| Center Wavelength | 1310/1550nm |
| Storage Temperature | -40－85℃ |
| Operating Relative Humidity | 5-95% |
| Supply Voltage | 3.3V |
| Power Dissipation | <1W |
| Data Rate | 1250Mbps |
| Average Output Power | -5-0dBm |
| Extinction Ratio（Er） | >8dB |
| Receiver Sensitivity（Rsen） | ≥-24dBm |
| DDM | Supported |
| ompatible brands | Cisco\HP\H3C\HUAWEI |
| Warranty | 5 Years |
SFP package with LC connector
1310nm DFB Laser and 1550nm PIN photodetector
1550nm DFB Laser and 1310nm PIN photodetector
Up to 40Km transmission on SMF
+3.3V single power supply
LVPECL compatible data input/output interface
Low EMI and excellent ESD protection
laser safety standard IEC-60825 compliant
Compatible with RoHS
Compatible with SFF8472
No reviews yet

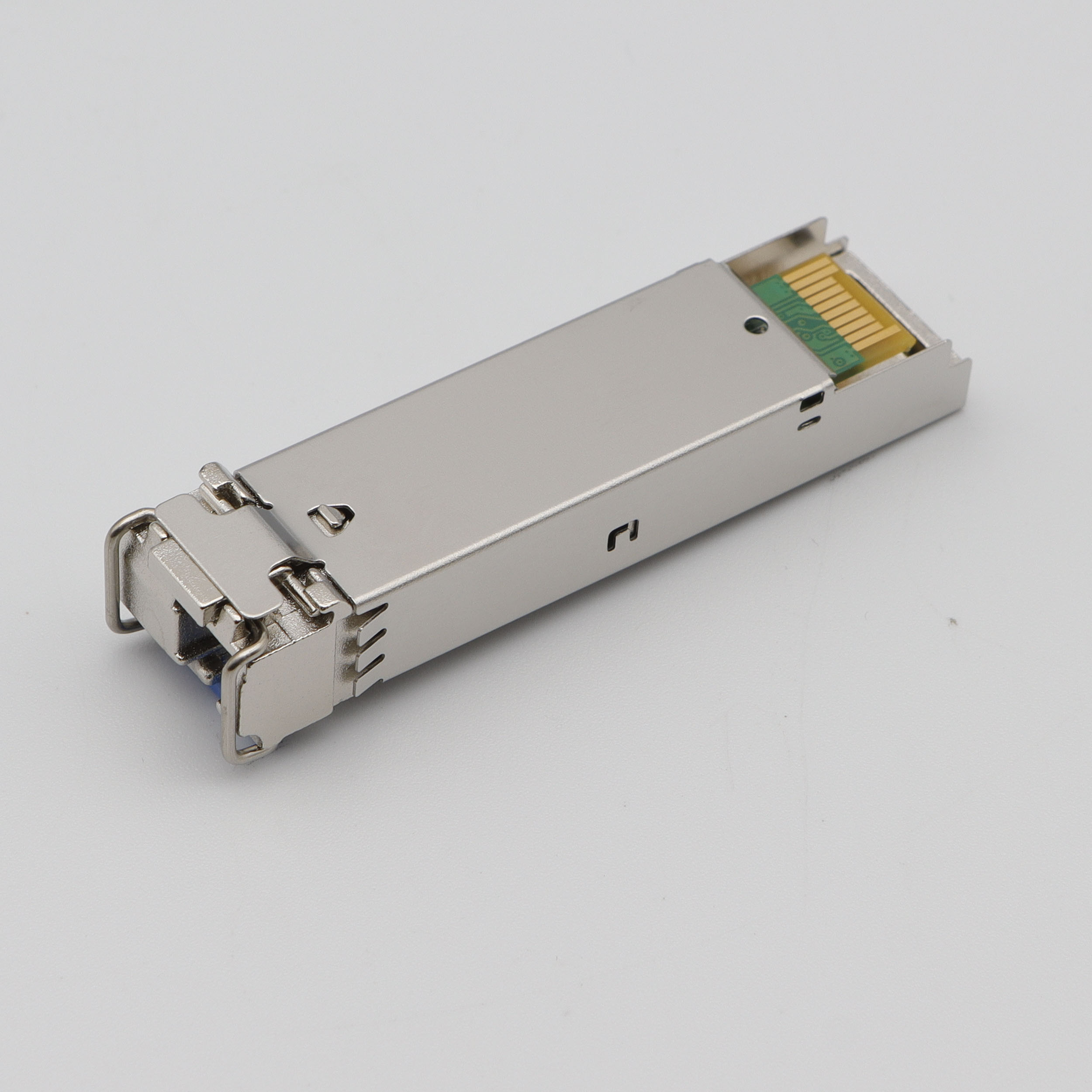

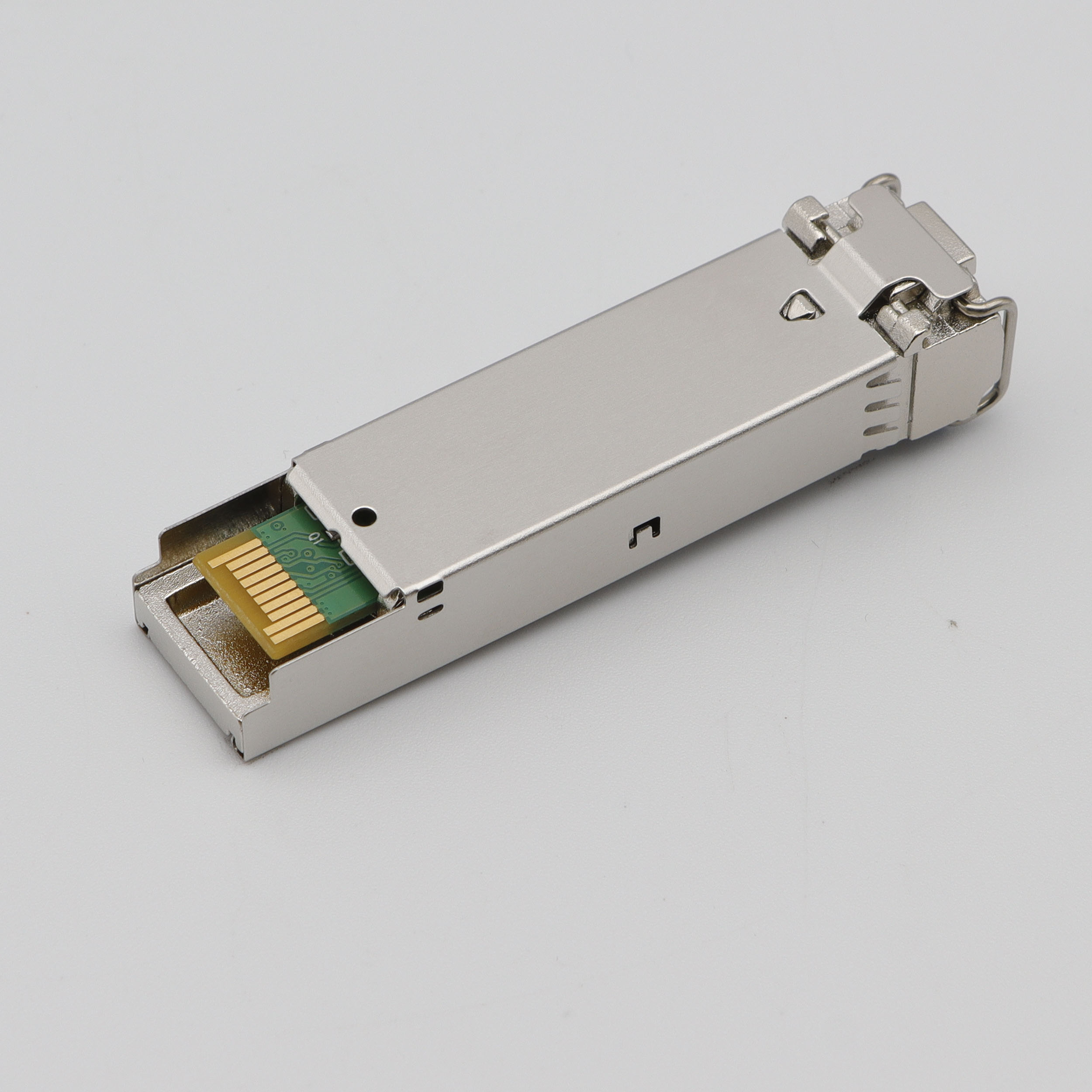

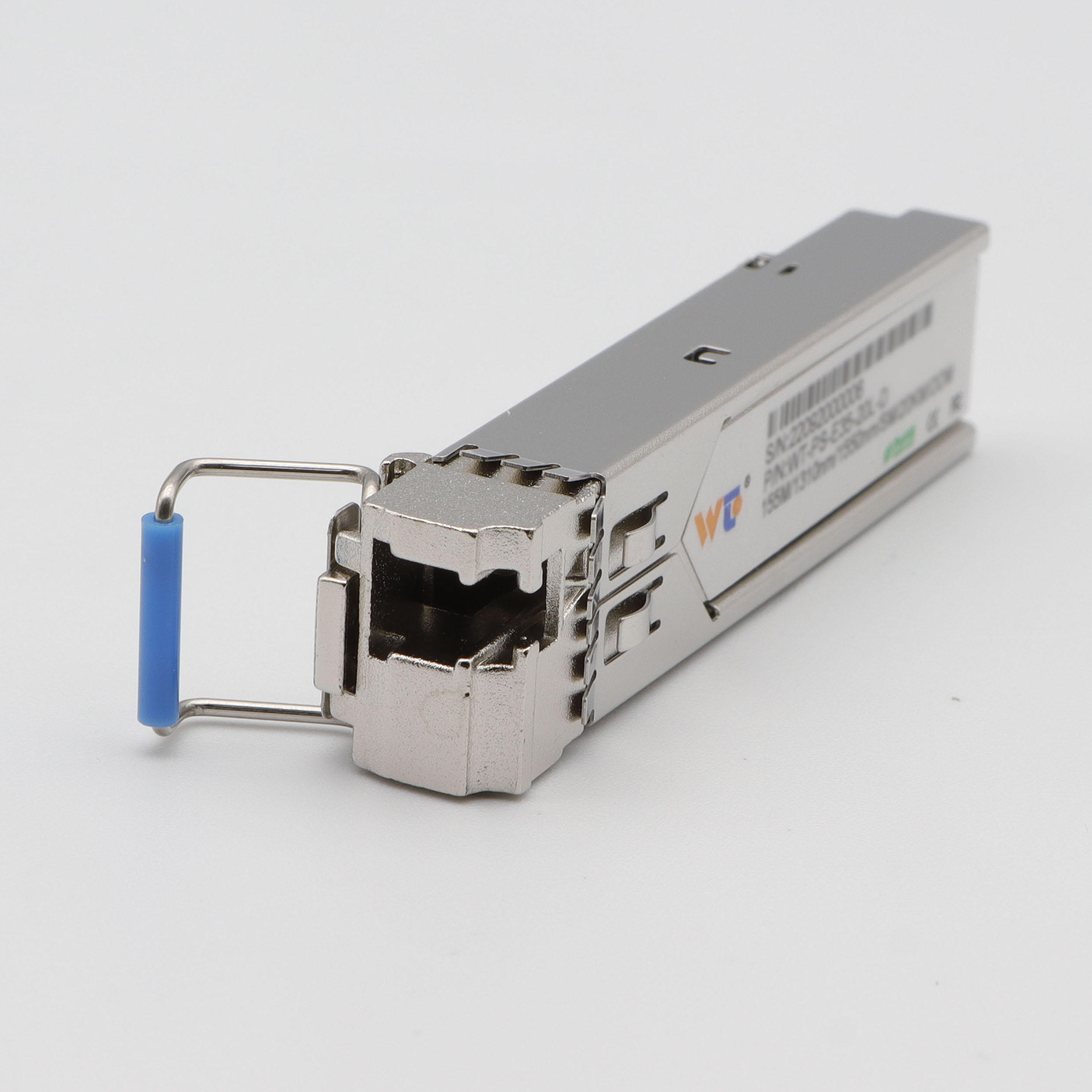

WT SFP Transceiver Module,WT-PS-G35-40LI-D
WT-PS-G35-40LI-D
