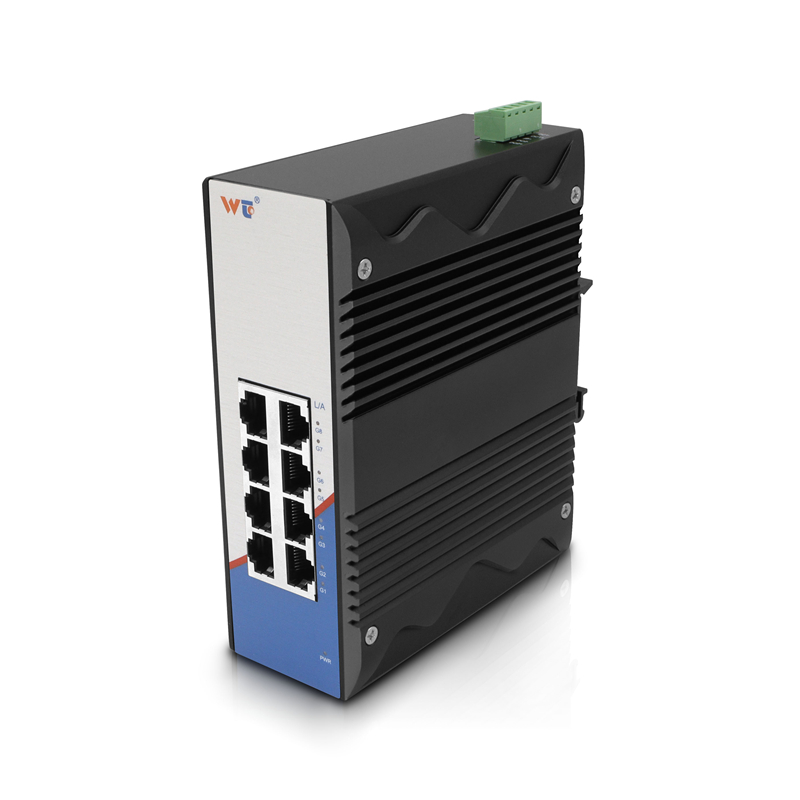

RS238-8GT is an industrial switch with extended temperature ranges developed by Wintop Optical to fulfill needs in industries including smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on.
| Applicable Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-T IEEE 802.3ab 1000Base-T | Physical Properties | Enclosure: Aluminum enclosure, IP40-rated protection Size: 142 x 116 x 51 mm Weight: 780 g Mounting method: Guide rail type |
| Switching Feature | Back plane bandwidth: 16 Gbps List of MAC addresses: 2K | Environmental Restrictions | Working temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Ports | Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported. | Standards & Certification | IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |
| LED Indicator | PWR (Power), L/A (Link/Activity) | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: DC 9~48V (redundancy) Full-load power consumption: 4W Input current Maximum DC current, 400 mA | Warranty | Quality assurance: 5 years |
• 8 Gigabit fiber ports;
• Capable of working with full load under the temperature of -40 ~ 85 ˚C;
• The voltage ranges between DC9~48V, and dual redundant power supply is provided;
• IP40-rated protection, fan-free design, shock-resistant aluminum enclosure;
No reviews yet
RS238-8GT，WT Unmanaged Switch，8x 10/100/1000BASE-T RJ45，Unmanaged Switch
RS238-8GT
