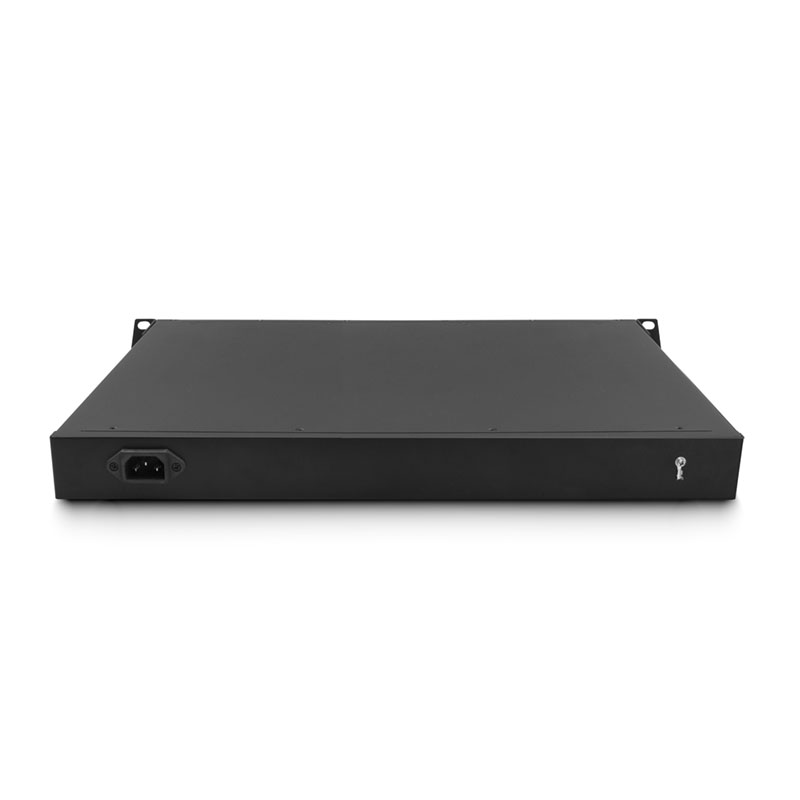

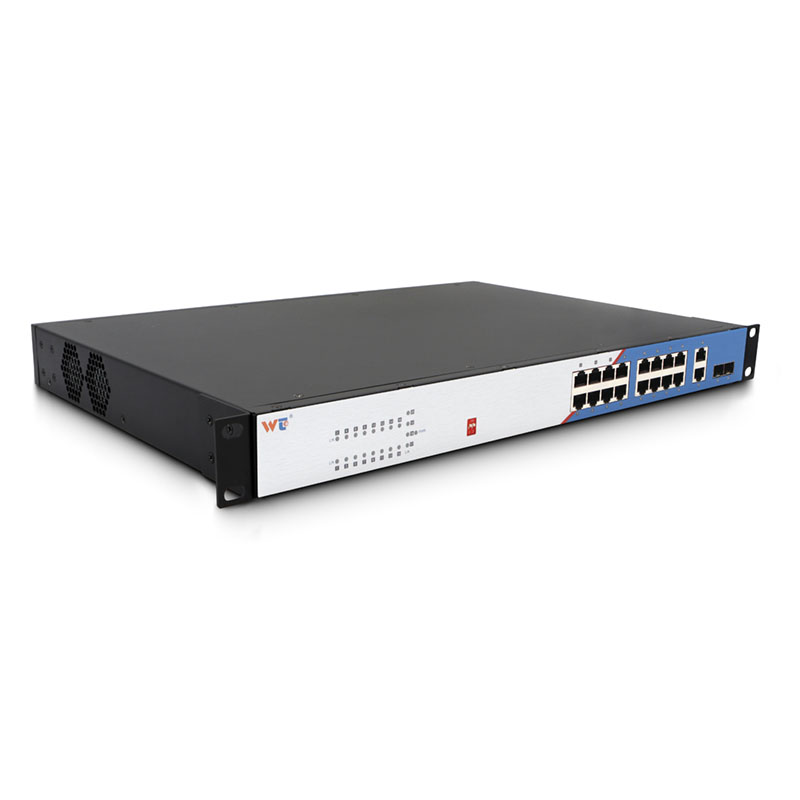

The CM2320-2GF18GT-24 POE Ethernet switch is a rack-mounted product with 2 Gigabit fiber ports and 18 Gigabit copper ports. It features low power consumption, easy and flexible use, convenient mounting, superior performance and high performance-cost ratio.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT | Physical Properties | Enclosure: Metal, IP40-rated protection Size: 440*3000*44 mm Weight: 4380g Mounting method: Rack-mounted |
| Switching Feature | Back plane bandwidth: 40 Gbps List of MAC addresses: 8K Message buffer size: 4.1 Mbit | Environmental Restrictions | Working temperature: -20 ~ 75°C (-4 ~ 167°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Ports | Gigabit fiber port: 1,000 Mbps Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported, transmission distance 0-100 m | Standards & Certification | IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |
| LED Indicator | PWR, Link/ACT | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: AC220V | Warranty | Quality assurance: 3 years |

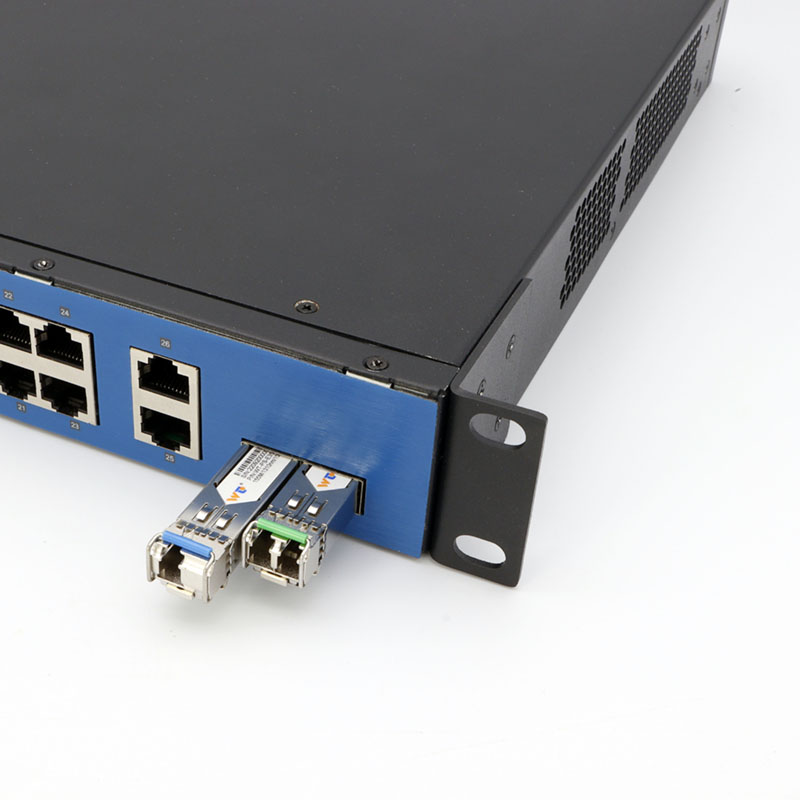

2 Gigabit fiber ports and 18 Gigabit copper ports
Capable of working with full load under the temperature of -20℃~75℃
Voltage range: AC220 V
Impact resistant metal housing
Dial switch with one button for VLAN separation;
No reviews yet
CM2320-2GF18GT，WT Smart Dial Switch，18x 10/100/1000BASE-T RJ45，2*1G SFP ，Smart Dial Switch
CM2320-2GF18GT
