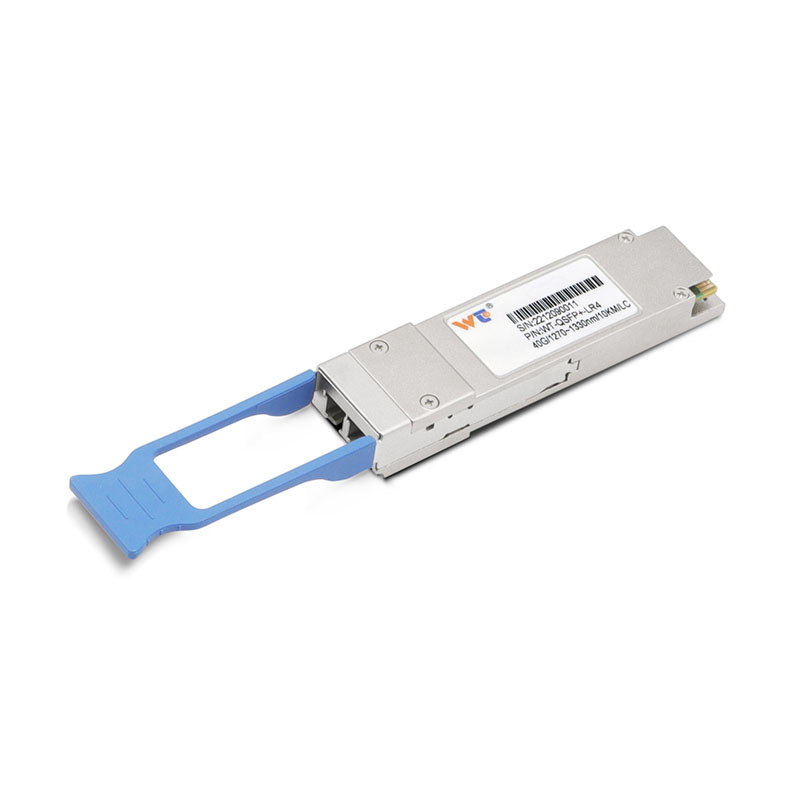

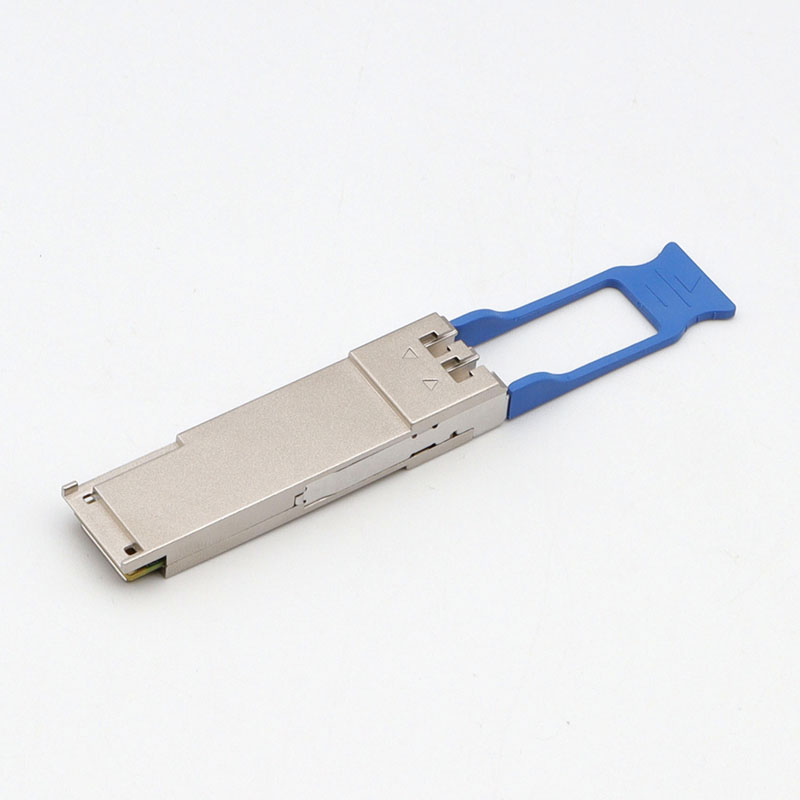

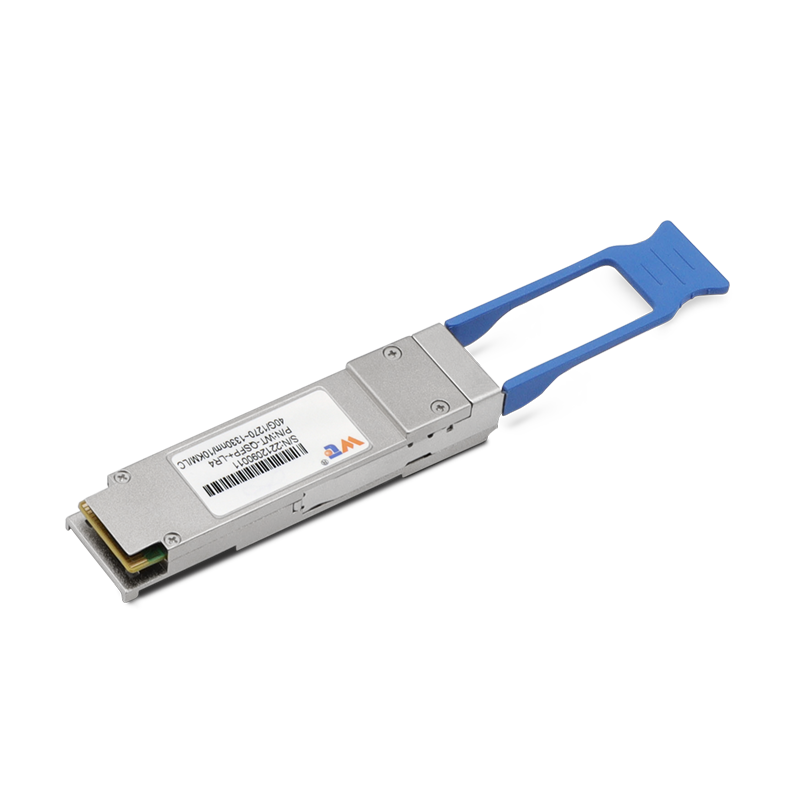

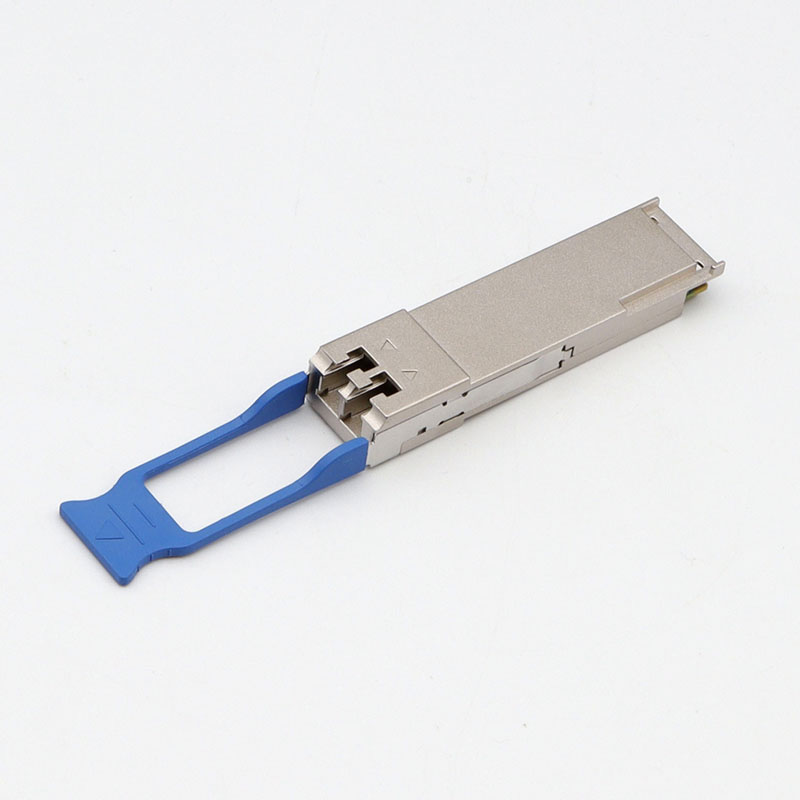

WT SFP Transceiver Module,WT-QSFP+ -LR4,40GBase-LR4, QSFP+ Transceiver for SMF, 10 km

US$
498.86
FS P/N: WT-QSFP+ -LR4
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
5-Year Warranty
5-Year Warranty
-
+
Product Highlights
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

  • QSFP+ MSA compliant

  • Compliant with QDR/DDR Infiniband data rates

  • Up to 11.2Gb/s data rate per wavelength

  • 4 CWDM lanes MUX/DEMUX design

  • Up to 10km transmission on single mode fiber (SMF)

  • Operating case temperature: 0 to 70 ℃

  • Maximum power consumption 3.5W

  • LC duplex connector

  • RoHS compliant


Center Wavelength850nm
Storage Temperature-40-85℃
Operating Relative Humidity5-95%
Supply Voltage3.6V
Power Dissipation<3.5W
Data Rate40Gbps
Average Output Power-7-2.3dBm
Extinction Ratio(Er)>3.5dB
OMA Sensitivity≥4.8dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty5 Years


  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

  • QSFP+ MSA compliant

  • Compliant with QDR/DDR Infiniband data rates

  • Up to 11.2Gb/s data rate per wavelength

  • 4 CWDM lanes MUX/DEMUX design

  • Up to 10km transmission on single mode fiber (SMF)

  • Operating case temperature: 0 to 70 ℃

  • Maximum power consumption 3.5W

  • LC duplex connector

  • RoHS compliant
