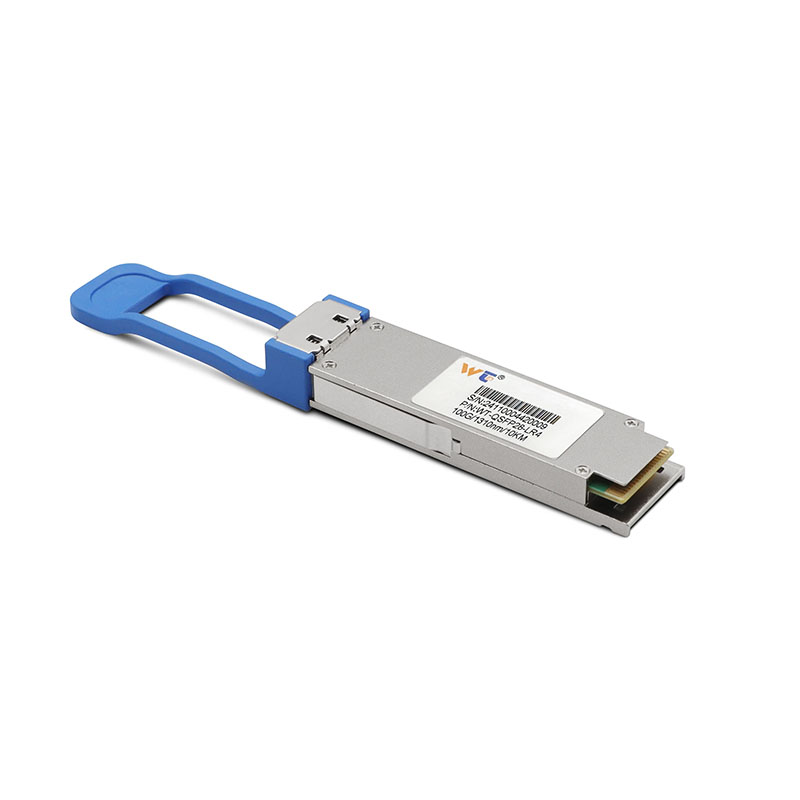

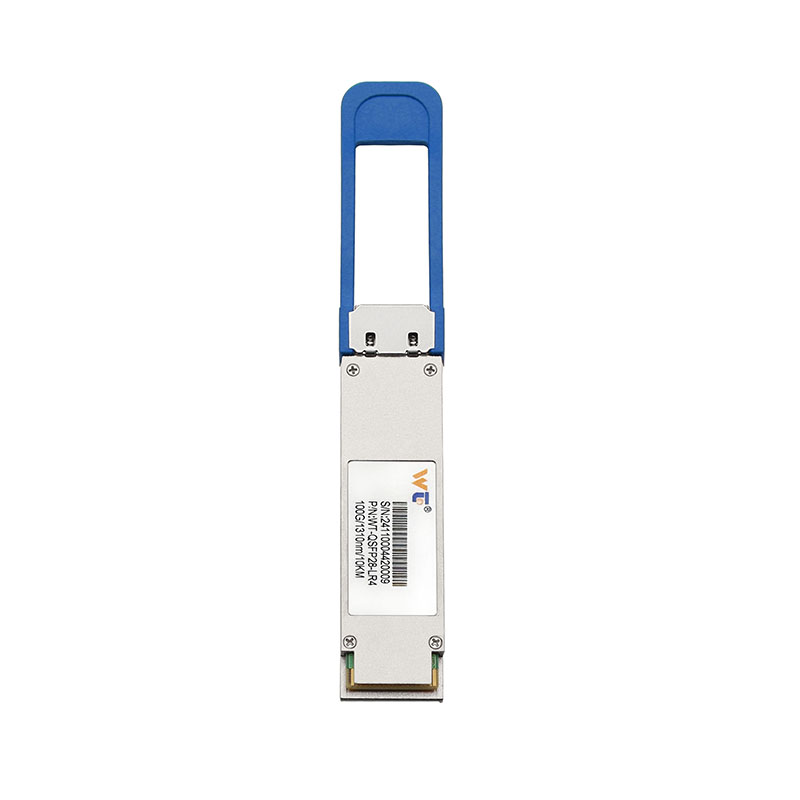

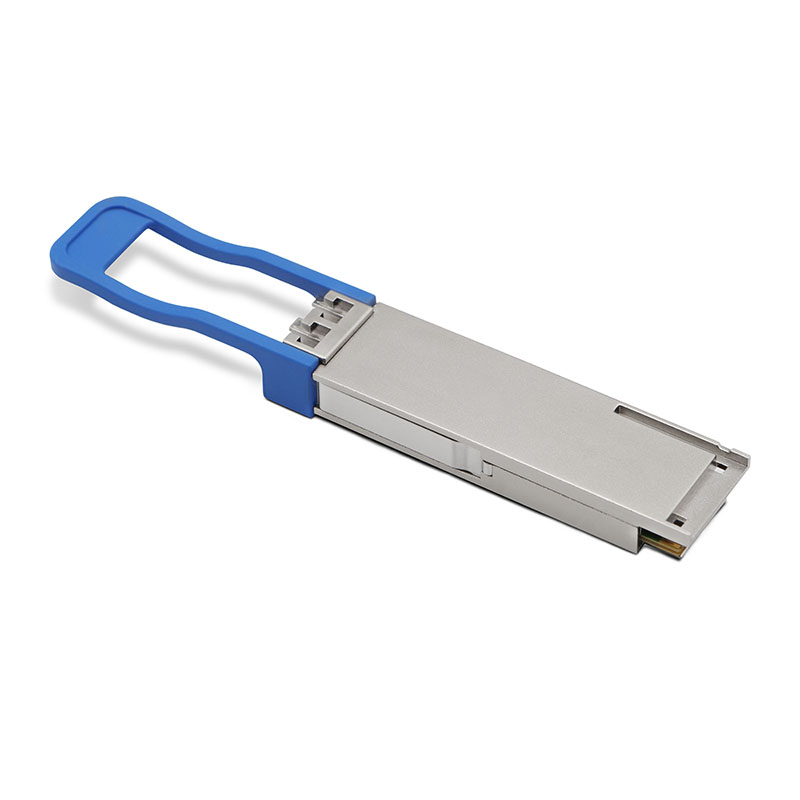

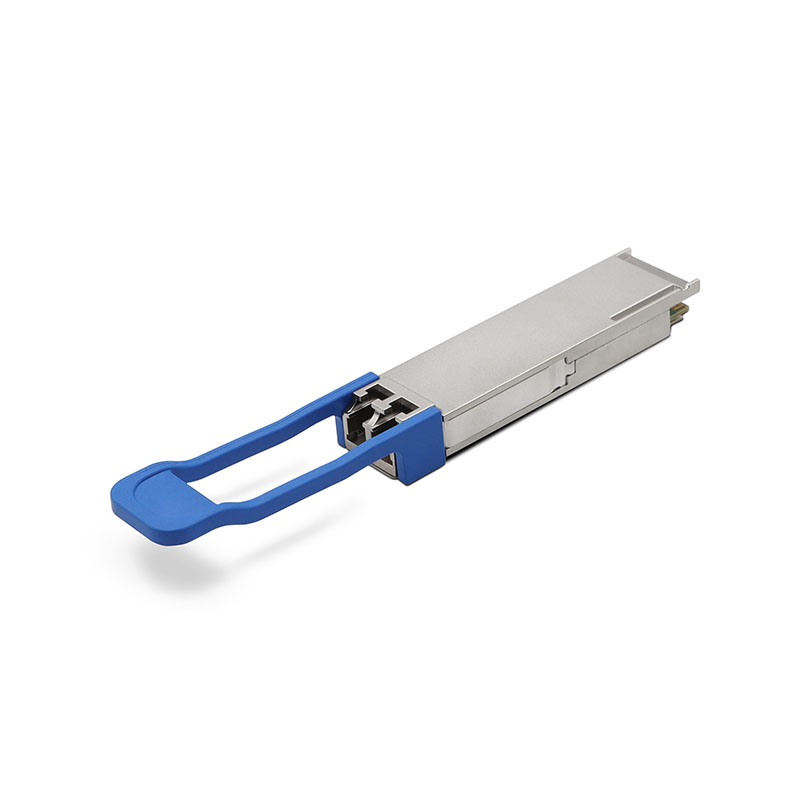

WT SFP Transceiver Module,WT-QSFP28-LR4,100GBase-LR4 QSFP28 Transceiver for SMF, 10 km

US$
1028.57
 FS P/N: WT-QSFP28-LR4
123Sold 99Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
5-Year Warranty
5-Year Warranty
-
+
Product Highlights

  • Supports 103.1Gb/s, each lane bit rate 25.78 Gb/s

  • Up to 10km transmission on SMF

  • LAN WDM DFB laser and PIN receiver

  • I2C interface with integrated Digital Diagnostic monitoring

  • QSFP28 MSA package with duplex LC connector

  • Single +3.3V power supply

  • Maximum power consumption 4 W

  • Operating case temperature: 0 to +70 °C

  • Complies with EU Directive 2011/65/EU (RoHS 6/6)


Center Wavelength850nm
Storage Temperature-40－85℃
Operating Relative Humidity5-95%
Supply Voltage3.6V
Power Dissipation<3.5W
Data Rate40Gbps
Average Output Power-8.4-2.4dBm
Extinction Ratio（Er）>3dB
OMA Sensitivity≥4.8dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty5 Years


  • Connectivity Solutions
  • Features

  • Supports 103.1Gb/s, each lane bit rate 25.78 Gb/s

  • Up to 10km transmission on SMF

  • LAN WDM DFB laser and PIN receiver

  • I2C interface with integrated Digital Diagnostic monitoring

  • QSFP28 MSA package with duplex LC connector

  • Single +3.3V power supply

  • Maximum power consumption 4 W

  • Operating case temperature: 0 to +70 °C

  • Complies with EU Directive 2011/65/EU (RoHS 6/6)



  • Reviews (99)
No reviews yet
  • Resources
100G QSFP28_LR4
