| Center Wavelength | 850nm |
| Storage Temperature | -40－85℃ |
| Operating Relative Humidity | 5-95% |
| Supply Voltage | 3.3V |
| Power Dissipation | <1.5W |
| Data Rate | 40Gbps |
| Average Output Power | -7.6-2.4dBm |
| Extinction Ratio（Er） | >3dB |
| OMA Sensitivity | ≥4dBm |
| DDM | Supported |
| ompatible brands | Cisco\HP\H3C\HUAWEI |
| Warranty | 5 Years |
RoHS-6 compliant
High speed / high density: support up to 4X10 Gb/s bi-directional operation
Compliant to industrial standard SFF-8436 QSFP+ standard
Low power consumption : less than 1.5W
Distance up to 300 meters by OM3 fiber and 400M by OM4 fibe
Reliable VCSEL and PIN photonic devices
I2C standard management interface
Excellent high speed signal integrity
No reviews yet

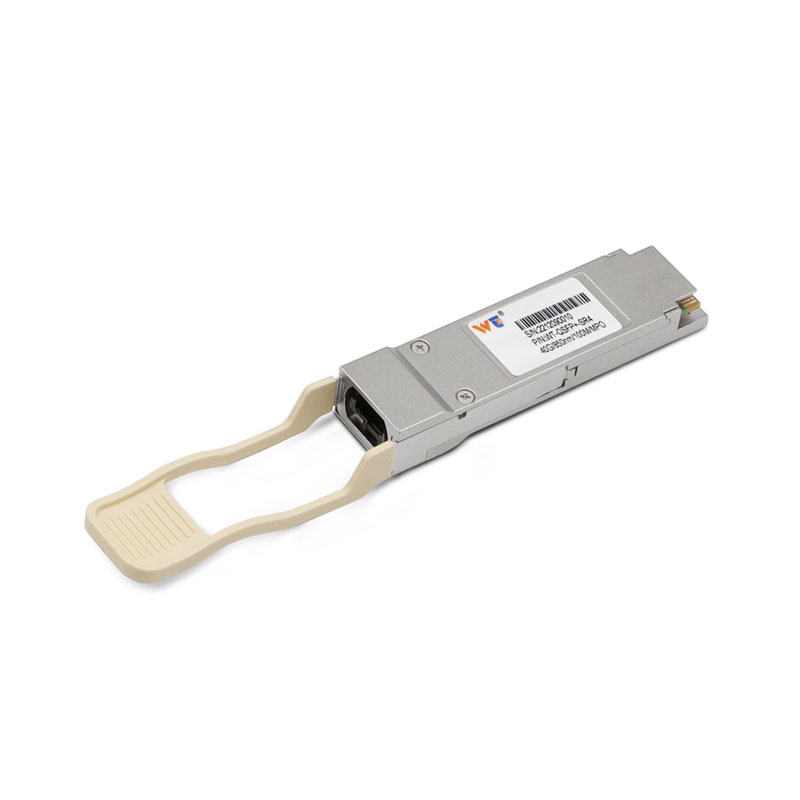

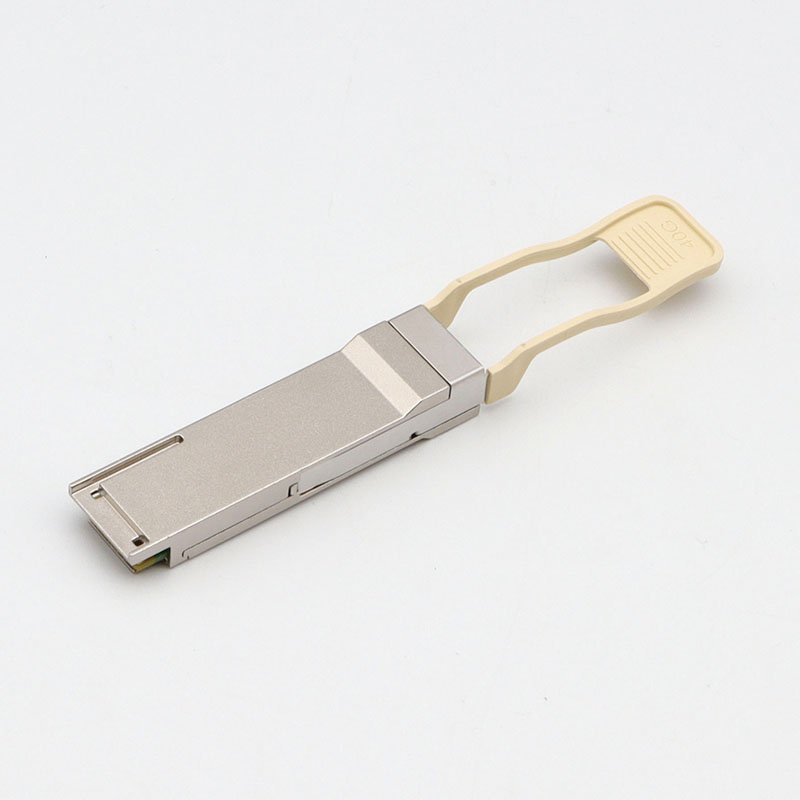

WT SFP Transceiver Module,WT-QSFP+ -SR4,40GBase-SR4 QSFP+ Transceiver, for MMF 100 meters (MPO/MTP)
WT-QSFP+ -SR4
