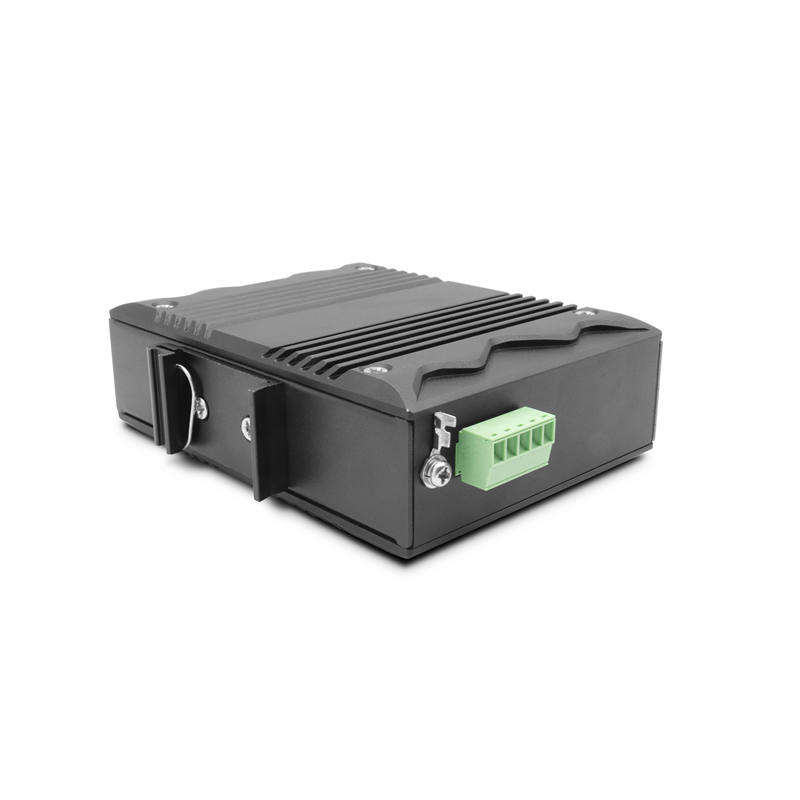

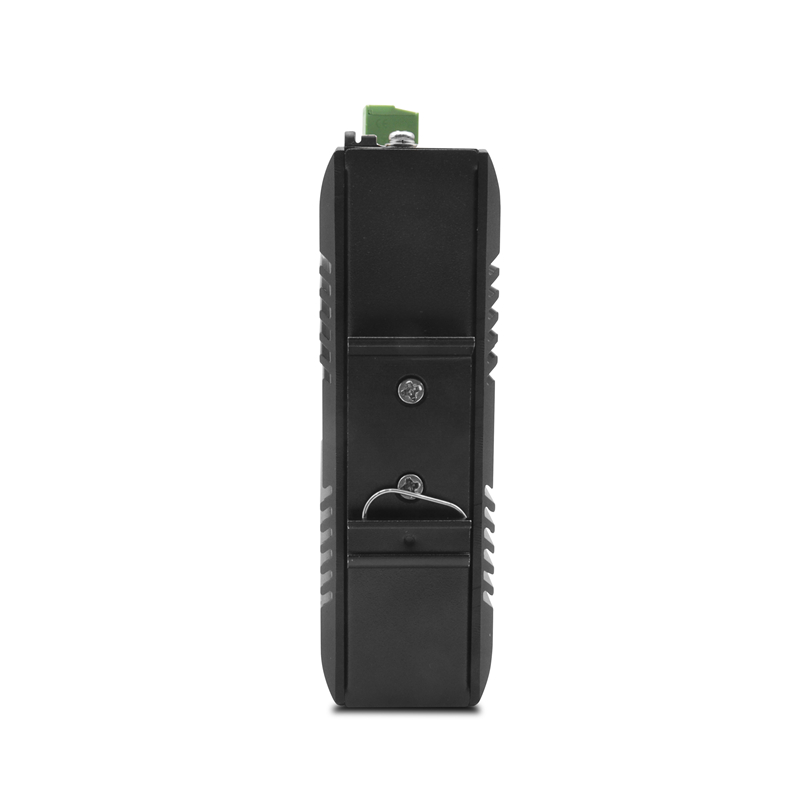

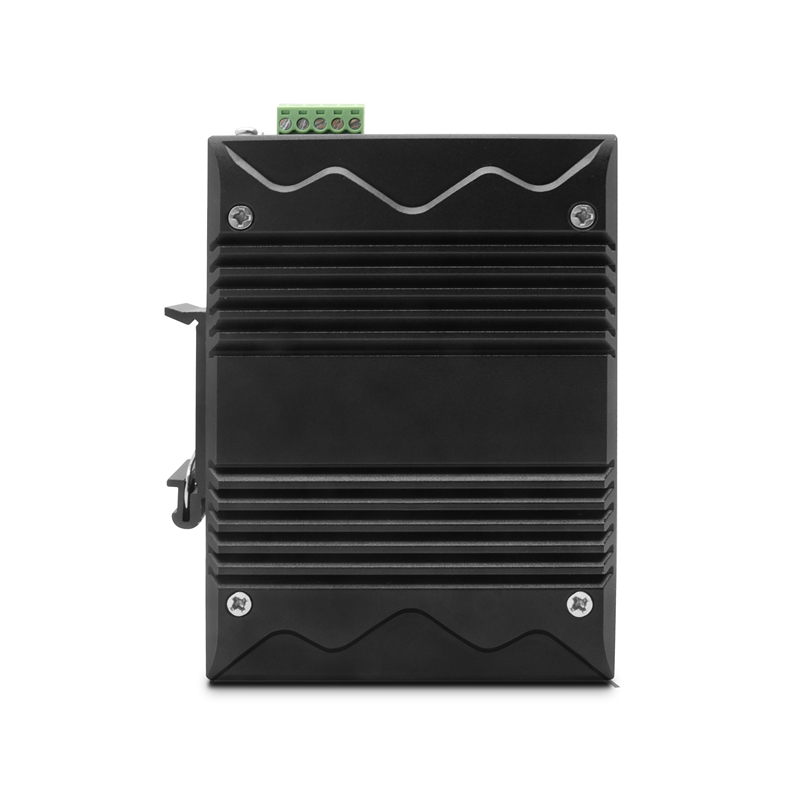

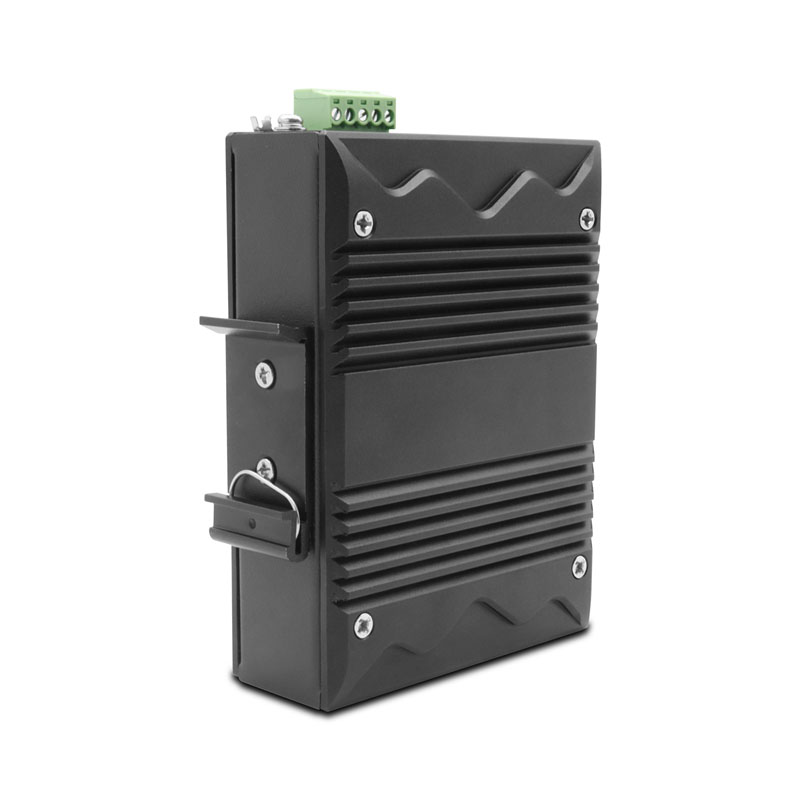

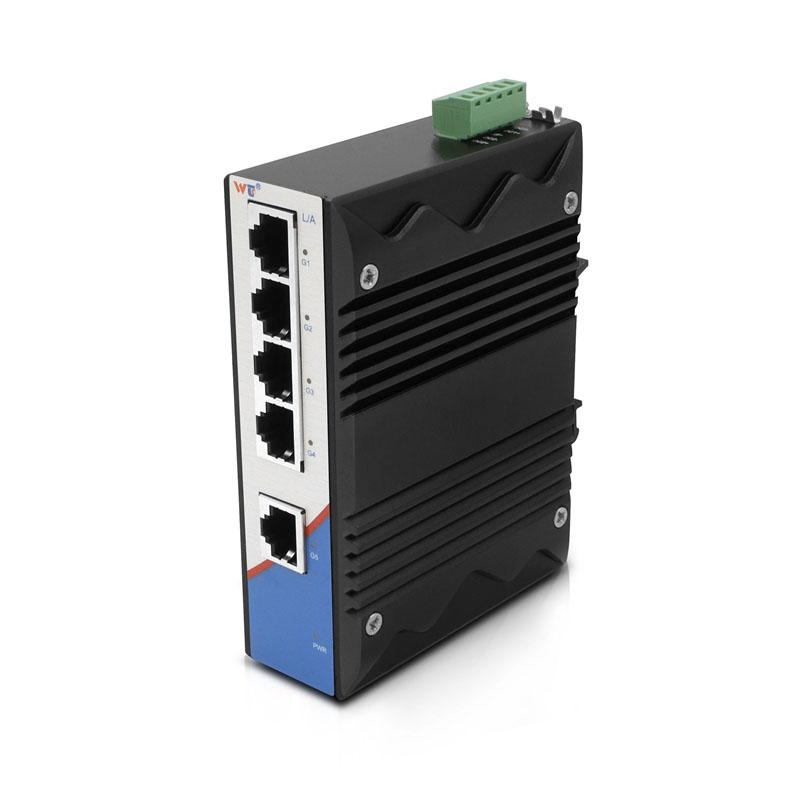

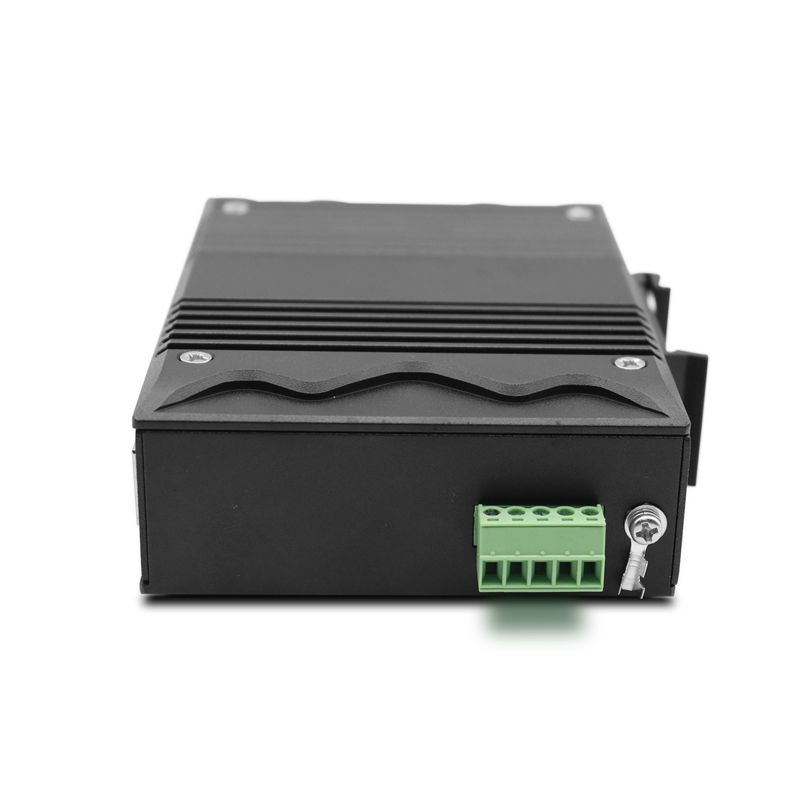

RS235-5GT is an industrial switch with extended temperature ranges developed by Wintop Optical to fulfill needs in industries including smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on.
| Applicable Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-T IEEE 802.3ab 1000Base-T | Physical Properties | Enclosure: Aluminum housing, IP40-rated Dimensions: 116 × 85 × 37 mm Weight: 430g Mounting: DIN-rail |
| Switching Feature | Backplane bandwidth: 10 Gbps MAC address table: 2K | Environmental Restrictions | Operating temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative humidity: 5% ~ 95% (non-condensing) |
| Ports | Gigabit copper port: 10/100/1000 Mbps self-adaptive, supports Full/Half duplex mode and MDI/MDI-X | Standards & Certification | EMS: • IEC61000-4-2 (ESD): Level 4 • IEC61000-4-4 (EFT): Level 4 • IEC61000-4-5 (Surge): Level 4 Anti-vibration: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 *For the latest certification status, please visit Wintop Optical's official website. |
| LED Indicator | PWR (Power), L/A (Link/Activity) | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: DC 9~48V (Redundant supported) Full-load power consumption: 2.1W Max input current: 400mA | Warranty | Quality assurance: 5 years |
• 5 Gigabit fiber ports
• Capable of working with full load under the temperature of -40 ~ 85 ˚C
• The voltage ranges between DC9~48V, and dual redundant power supply is provided
• IP40-rated protection, fan-free design, shock-resistant aluminum enclosure
No reviews yet
RS235-5GT，WT Unmanaged Switch，5x 10/100/1000BASE-T RJ45，Unmanaged Switch
RS235-5GT
