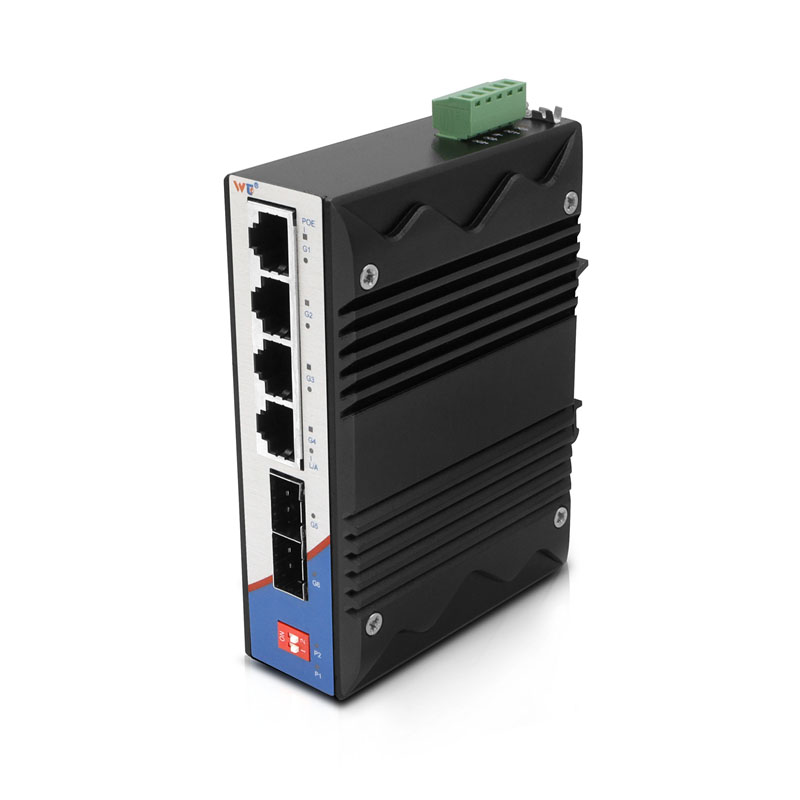

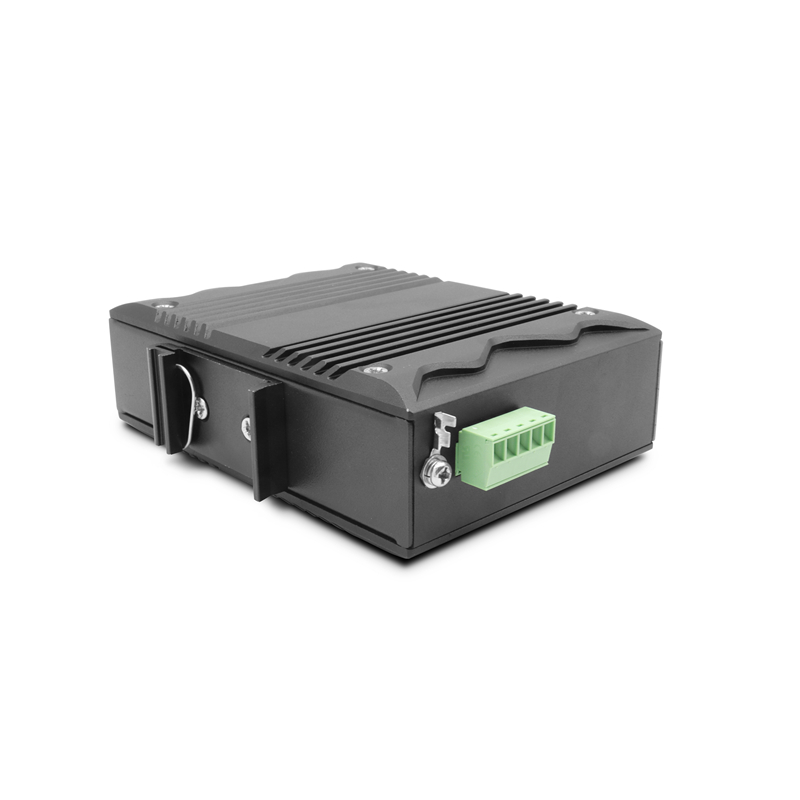

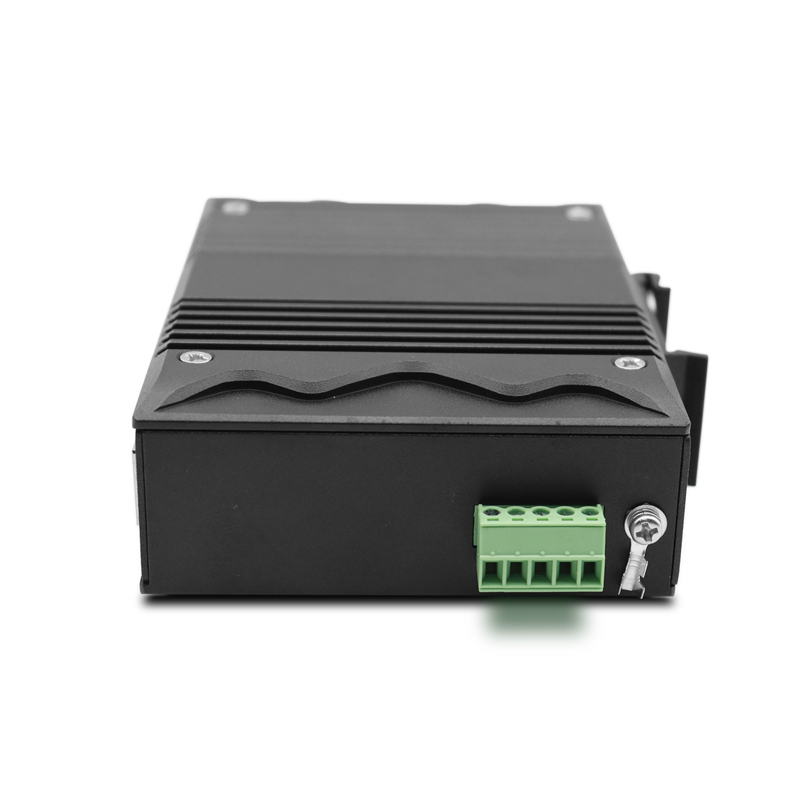

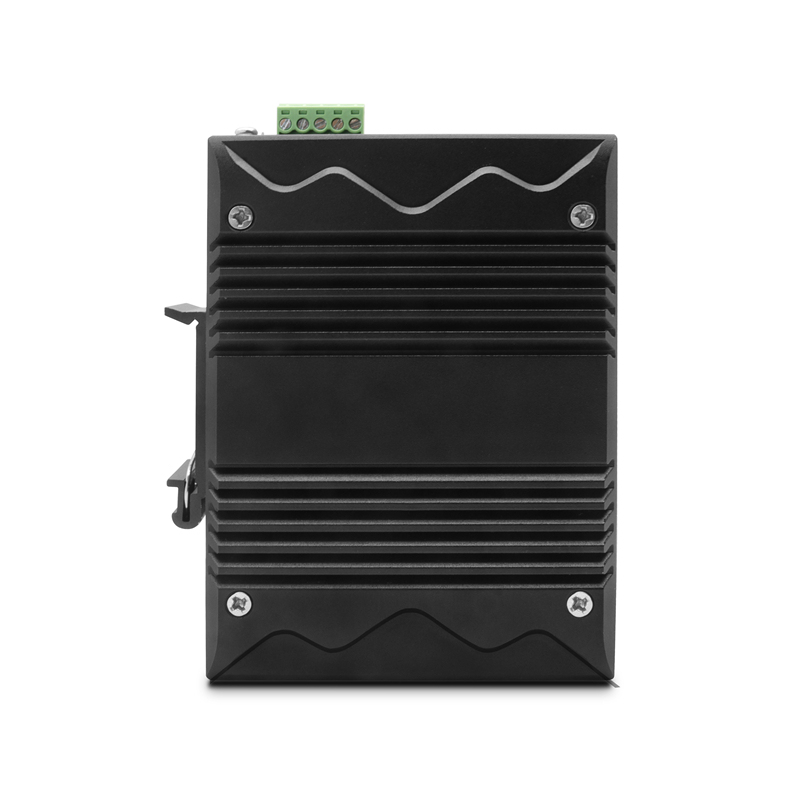

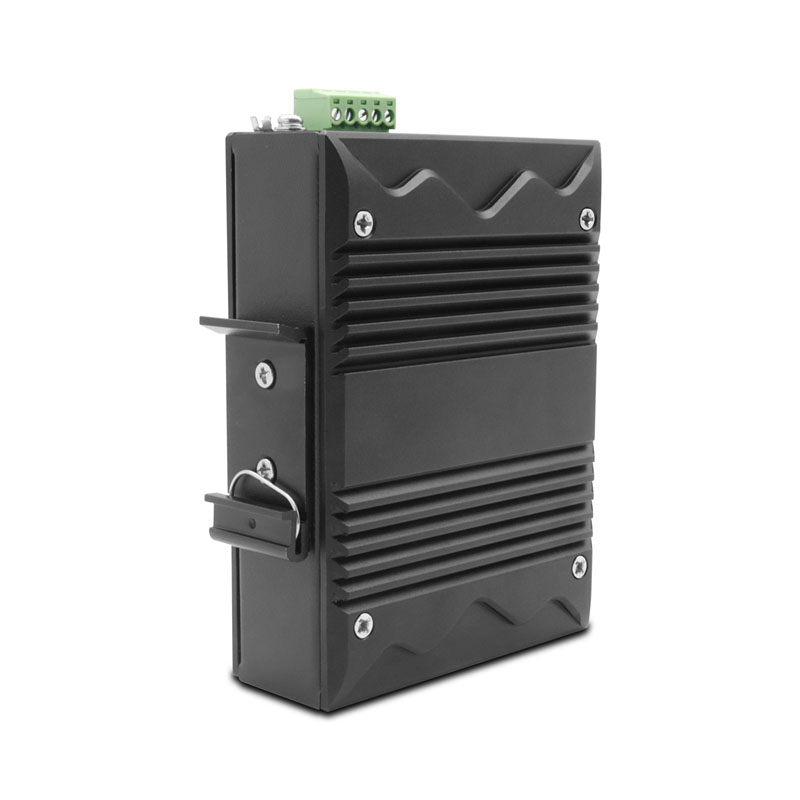

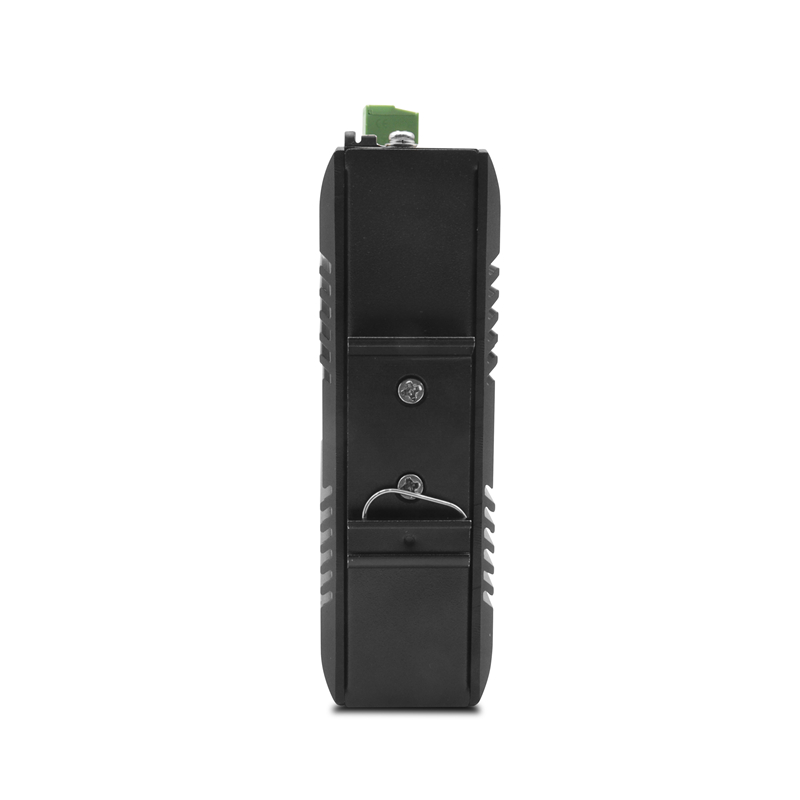

RS236-2GF4GT-4POE is an industrial switch with extended temperature ranges developed by Wintop Optical to fulfill needs in industries including smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT IEEE 802.3af/802.3at POE | Physical Properties | Enclosure: Aluminum enclosure, IP40-rated protection Size: 116 x 85 x 37 mm Weight: 430 g Mounting method: Guide rail type |
| Switching Feature | Back plane bandwidth: 12 Gbps List of MAC addresses: 2K Chip buffer size: 12 KByte | Environmental Restrictions | Working temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Ports | Fiber port: 1000 Mbps (port type: LC) Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported. Support POE power supply | Standards & Certification | IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |
| LED Indicator | P1, P2, L/A, POE | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: DC48~57V (redundancy) Full-load power consumption: 5.5W (excluding POE) Input current Maximum DC current, 400mA | Warranty | Quality assurance: 5 years |
2 Gigabit fiber ports, 4 Gigabit POE copper ports
Capable of working with full load under the temperature of -40 ~ 85 ˚C
The voltage ranges between DC48~57V, and dual redundant power supply is provided
IP40-rated protection, fan-free design, shock-resistant aluminum enclosure
Dial switch with one button for VLAN separation, one-button forced service at 10M
No reviews yet
RS236-2GF4GT-4POE，WT Smart Dial POE Switch，4x10/100/1000BASE-T RJ45，2*1G SFP ，Smart Dial POE Switch
RS236-2GF4GT-4POE
