• Fiber A: multi - fiber port

• Fiber B: single -fiber port

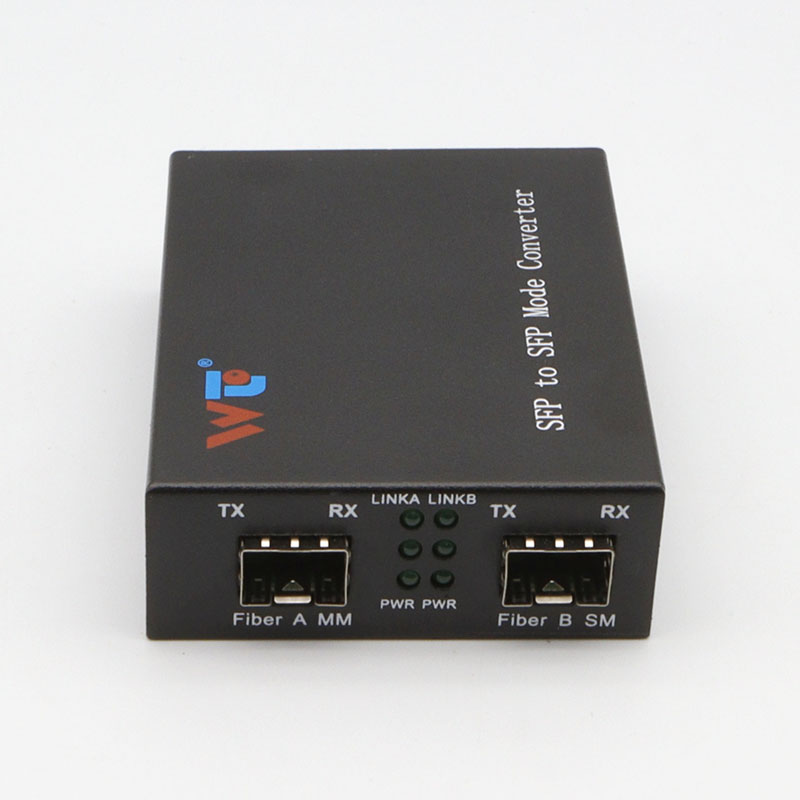

• LED: power*2  LINK A、LINK B

• Standard: IEEE 802.3

• Port: SC、LC

• Power: AC220V or DC 48V/1A 2A

• Operating temperature: 0℃~70℃

• Operating humidity: 5%~90%

• Supporting full duplex and half-duplex transmission

• Demension: 26mm (H)*70mm (W)*95mm (D)

• Single mode :1300nm、1310nm、1550nm

• Multi mode: 1310nm、1300nm、850nm

• Transmission fiber:

Multi mode:50/125、62.5/125 or 100/140um

Single mode:8.3/125,8.7/125,9/125 or 10/125um

• Transmission distance:

Multi mode: 0～2Km

Single mode: 2~100Km
