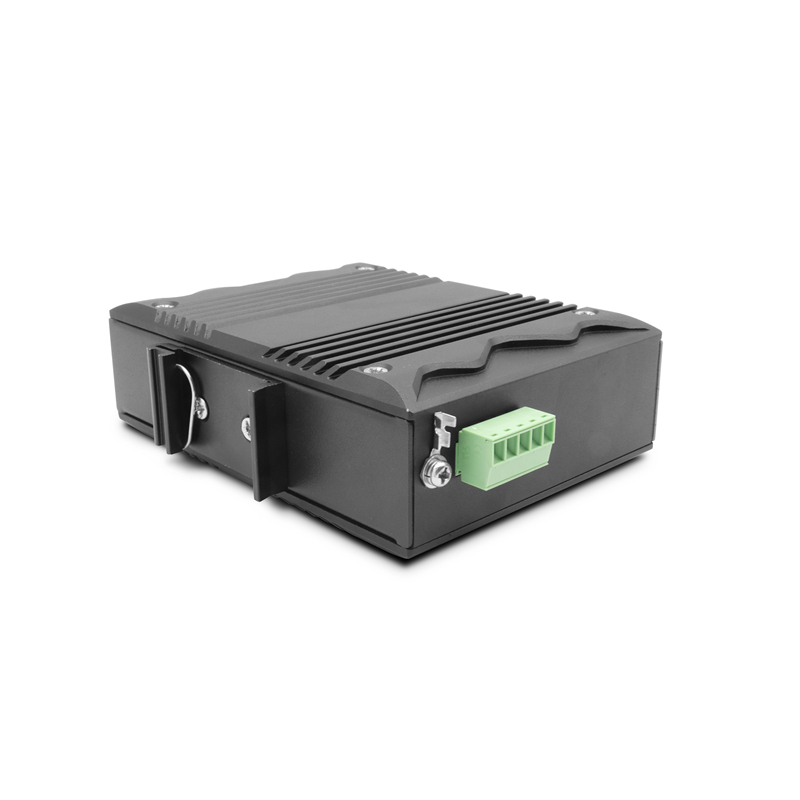

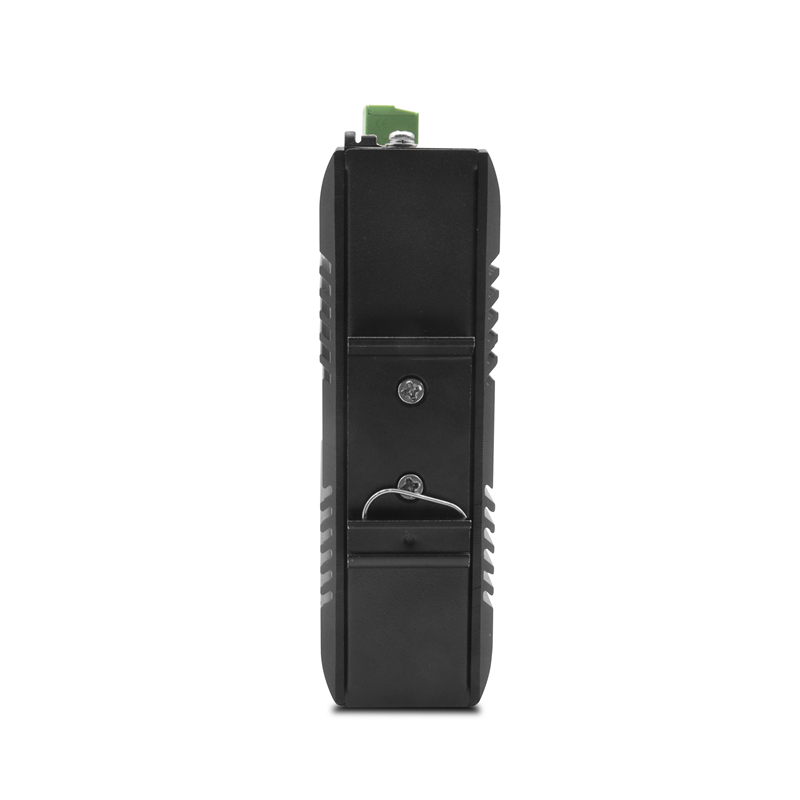

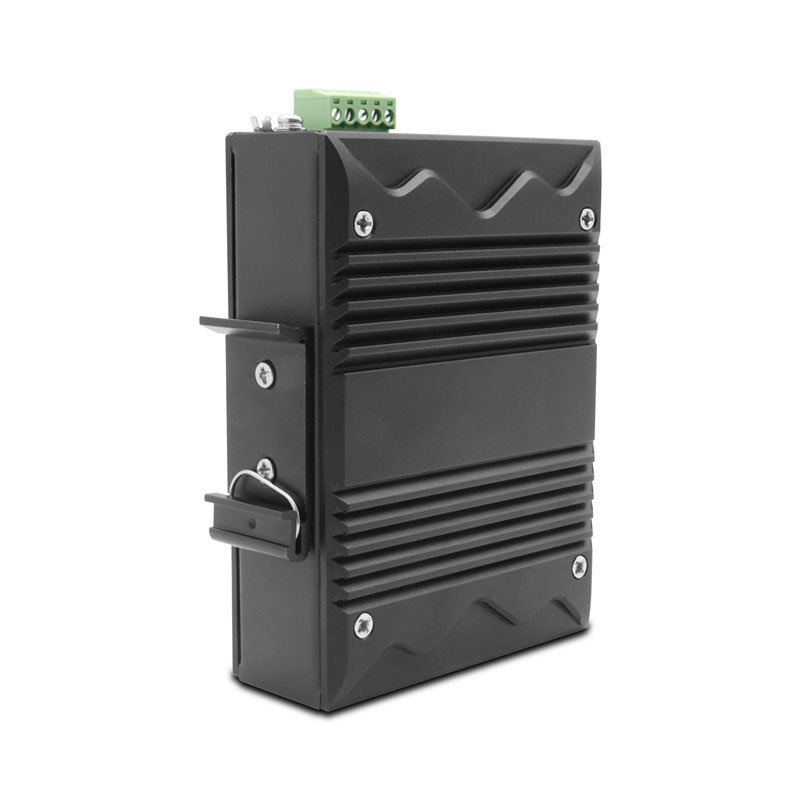

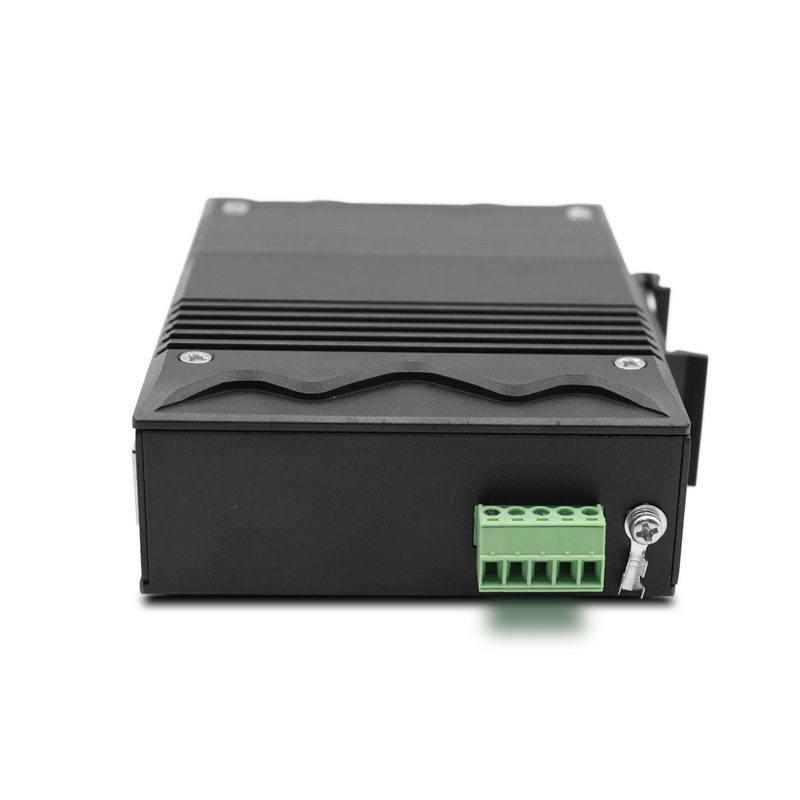

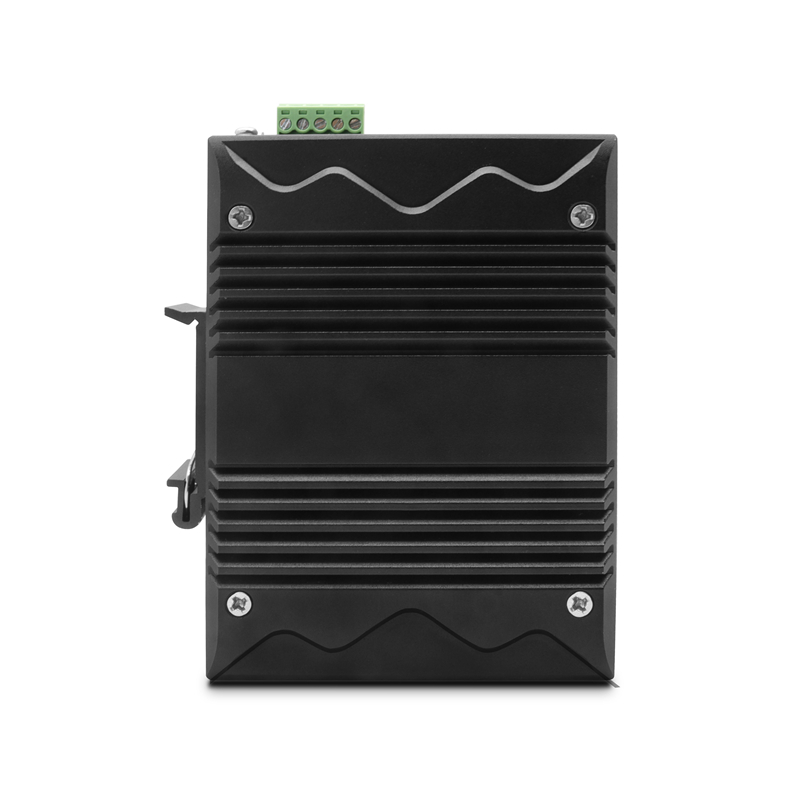

RS232-1GF1GT is an industrial Ethernet switch with extended temperature ranges developed by Wintop Optical to fulfill needs in industries including smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX IEEE 802.3ab 1000BaseT | Physical Properties | Enclosure: Aluminum, IP40-rated Dimensions: 116 × 85 × 37 mm Weight: 430g Mounting: DIN rail mounting |
| Switching Features | Backplane Bandwidth: 4 Gbps MAC Address Table: 2K entries | Environmental Limits | Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) Relative Humidity: 5% ~ 95% (non-condensing) |
| Ports | Fiber Port: 1000 Mbps Copper Port: 10/100/1000 Mbps self-adaptive, supports Full/Half Duplex, MDI/MDI-X | Standards & Certifications | EMS: – IEC 61000-4-2 (ESD) Level 4 – IEC 61000-4-4 (EFT) Level 4 – IEC 61000-4-5 (Surge) Level 4 Vibration: IEC 60068-2-6 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Note: Please refer to the official website of Wintop Optical for the latest certification status. |
| LED Indicators | PWR, L/A | MTBF | 500,000 hours |
| Power Requirements | Input Voltage: DC 9–48V (redundant input) Max Input Current: 400mA Full-load Power Consumption: 2W | Warranty | 5-year quality assurance |

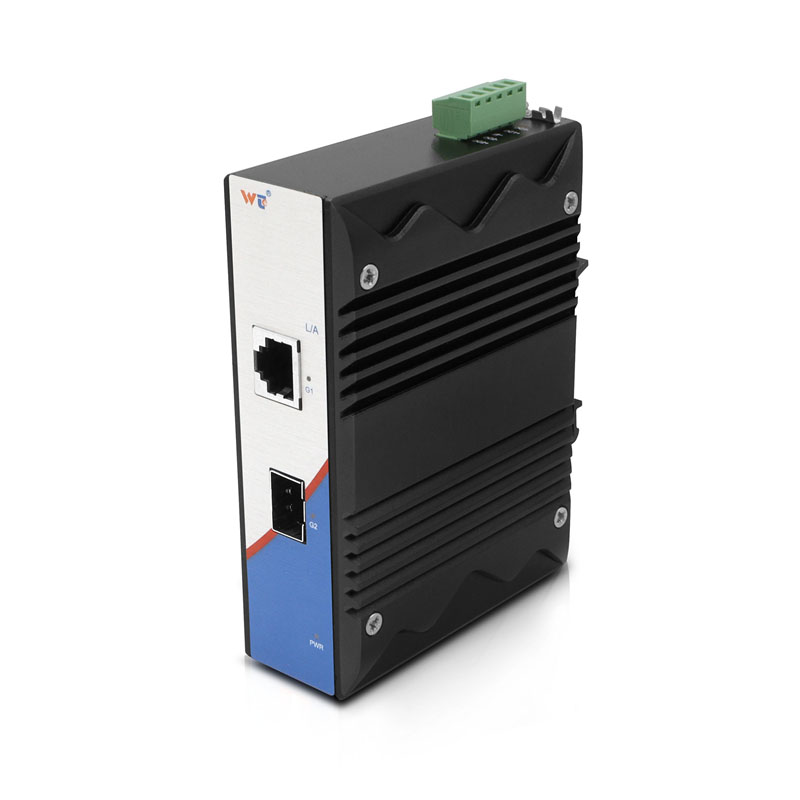

·1 Gigabit copper port and 1 Gigabit fiber port
·Capable of working with full load under the temperature of -40 ~ 85 ˚C
·The voltage ranges between DC9~48V, and dual redundant power supply is provided
·IP40-rated protection, fan-free design, shock-resistant aluminum enclosure
No reviews yet
RS232-1GF1GT，WT Unmanaged Switch，1x 10/100/1000BASE-T RJ45，1*1G SFP，Unmanaged Switch
RS232-1GF1GT
