| Center Wavelength | 1270/1330nm |
| Storage Temperature | 0－70℃ |
| Operating Relative Humidity | 5-95% |
| Supply Voltage | 3.3V |
| Power Dissipation | <1W |
| Data Rate | 10.3125Gbps |
| Average Output Power | 0-5dBm |
| Extinction Ratio（Er） | >3.5dB |
| Receiver Sensitivity（Rsen） | ≥-15dBm |
| DDM | Supported |
| ompatible brands | Cisco\HP\H3C\HUAWEI |
| Warranty | 3 Years |
SFP+ package with LC connector
1270nm(1330nm) DFB Laser and PIN-TIA photodetector
Up to 40Km transmission on SMF
+3.3V single power supply
Power dissipation<1W
2-wire interface with integrated Digital Diagnostic monitoring
Low EMI and excellent ESD protection
laser safety standard IEC-60825 compliant
Compatible with RoHS
Compliant with SFF-8472 SFP+ MSA
Compliant to SFP+ SFF-8431 and SFF-8432
No reviews yet

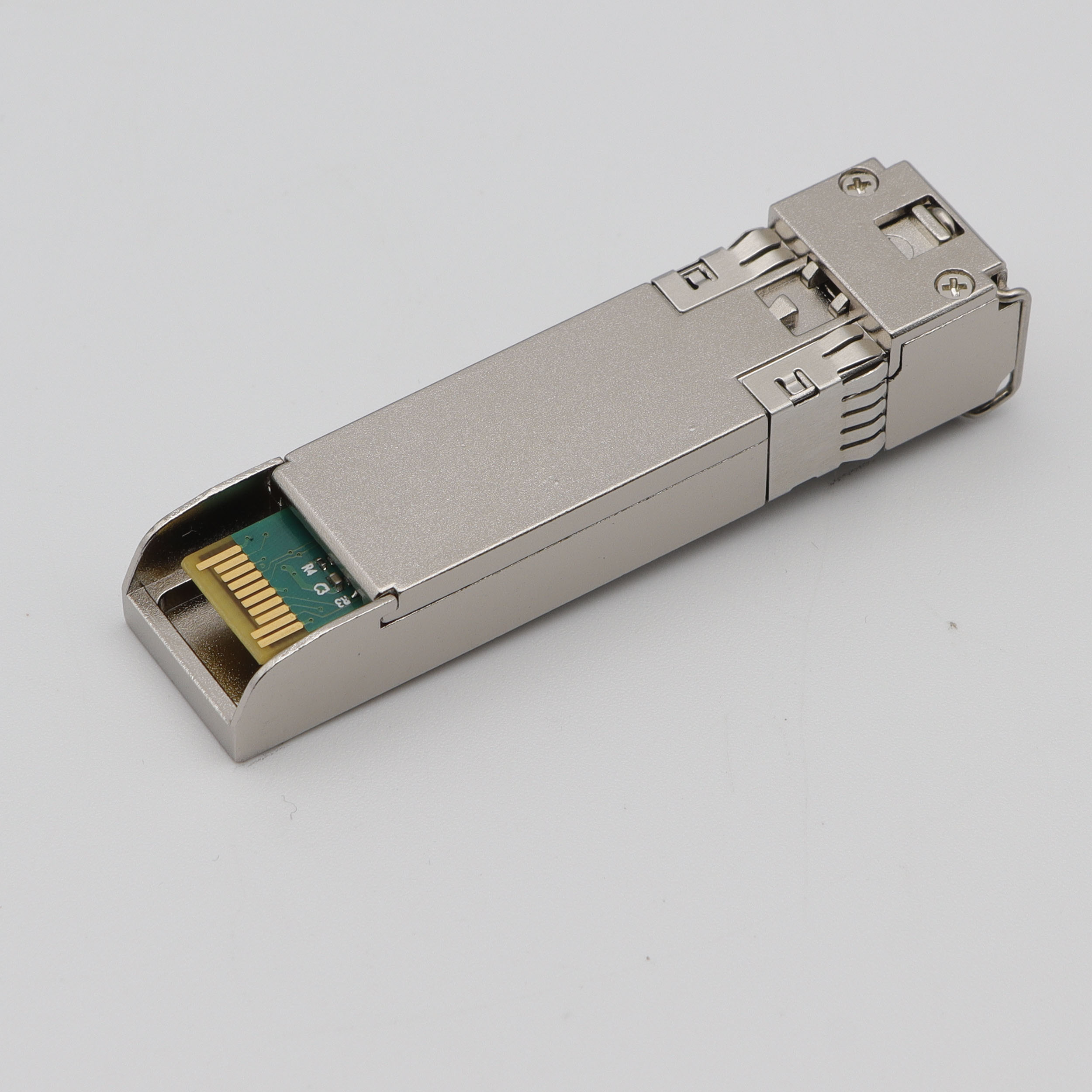

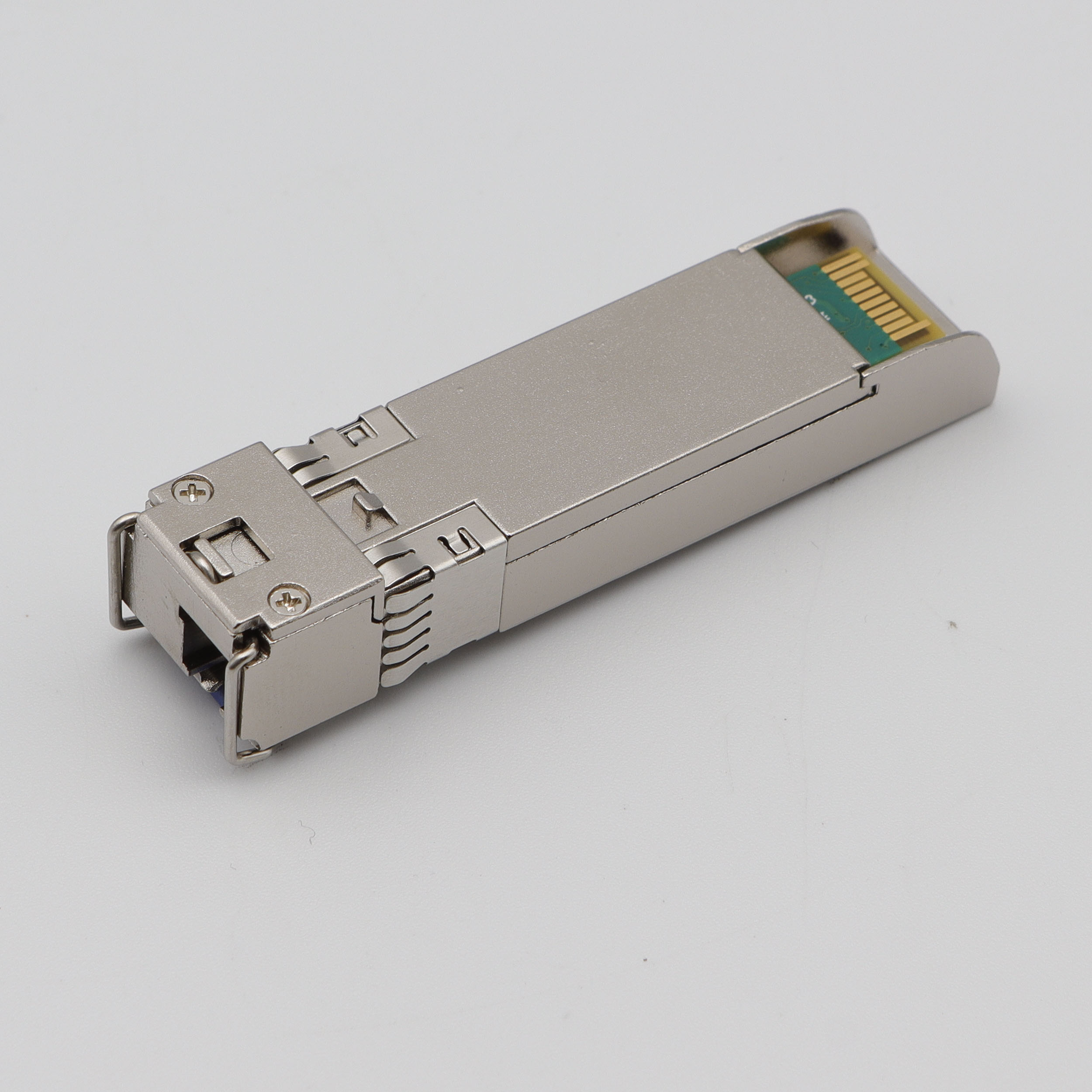

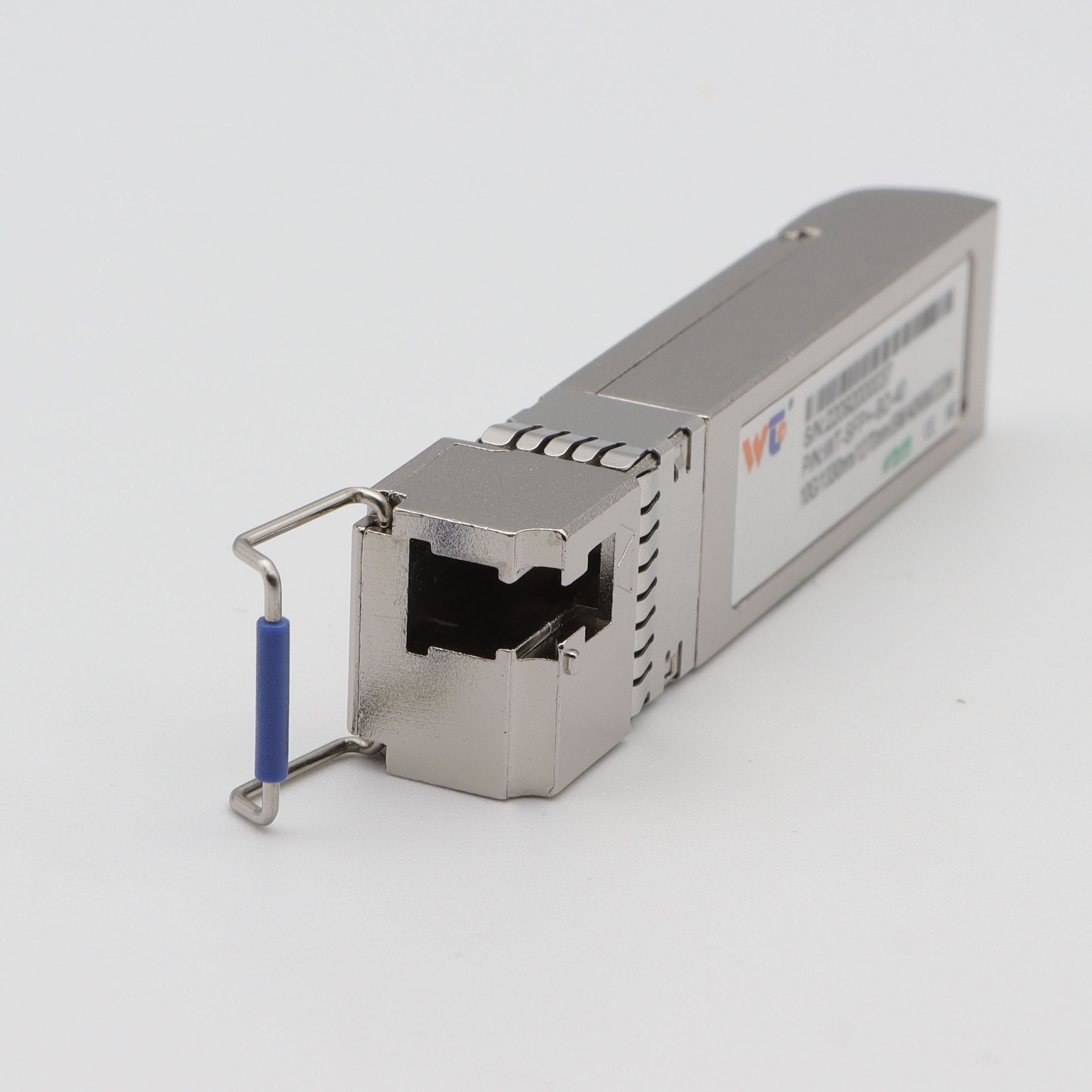

WT SFP Transceiver Module,WT-SFP+-BD-40,10G SFP+ BD Transceivers,Tx1330nm & Rx1270nm, up to 40 km,SMF,Commercial grade
WT-SFP+-BD-40
