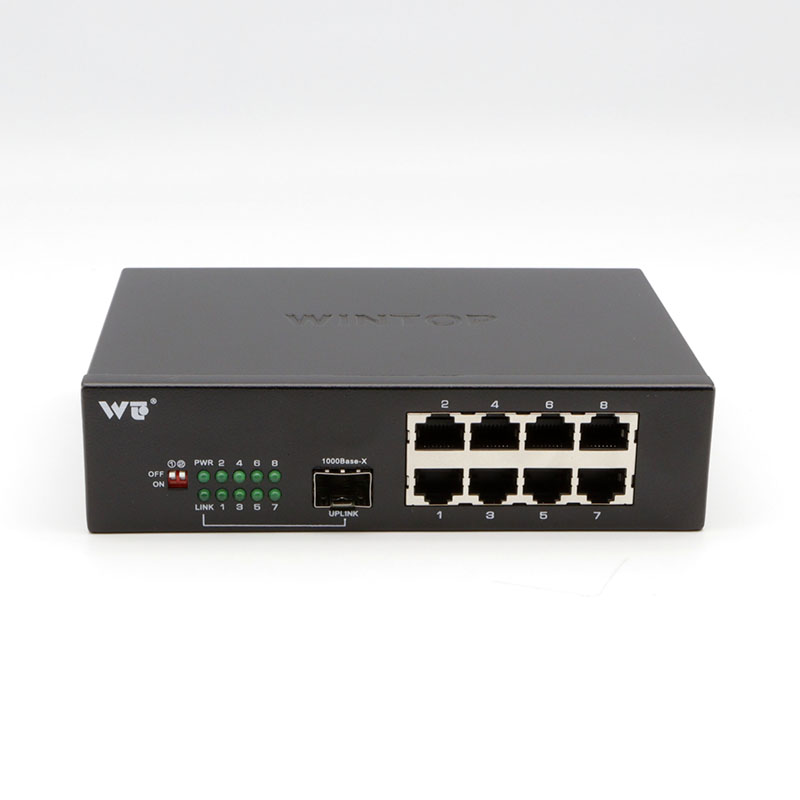

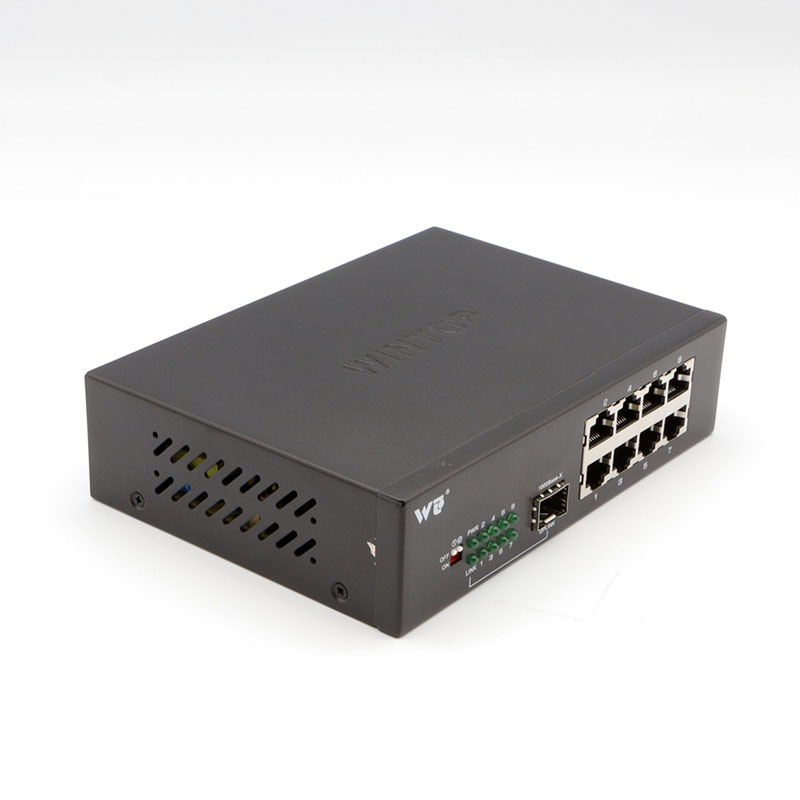

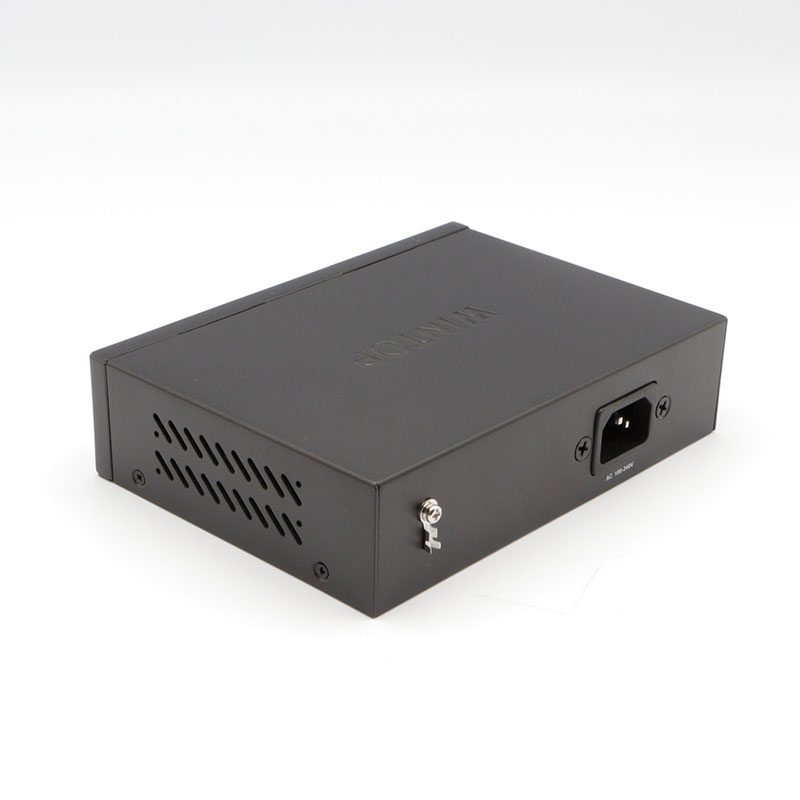

DS209-1GF8GT ethernet switch products are developed for network hd monitoring, network engineering and other needs of the ethernet switch. The product provides high-speed packet forwarding capability and ample backplane bandwidth to ensure clear and smooth image transmission. Embedded electrostatic and surge protection circuits to improve product stability. Support one-key VLAN configuration mode, which can realize port isolation and suppress network storm functions after configuration, and play a role in protecting information security, preventing virus transmission and network attacks;Support the video channel mode and establish a one-to-one channel mode for the downlink ports of two identical devices. Support the long-distance mode. After configuration, the downlink port rate is forced to be 10Base-T to increase the transmission distance of the downlink port. At this time, the transmission distance of the device downlink port is 0-300 meters. Fully meet the needs of network video surveillance systems, network engineering.downlink port is 0-300 meters. Fully meet the needs of network video surveillance system and network engineering.

Applicable Standards	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT	Physical Properties	160 x 115x 40 mm
Ports	RJ45	Environmental Restrictions	Operating temperature:-20 ~ 60°C (-40~ 140°F) Storage temperature:-40 ~ 85°C (-40 ~ 185°F) Environmental relative humidity:5 ~ 95% (non-condensing)
LED Indicator	PWR, Link, 10/100/1000Base-T	Warranty	Quality assurance: 3 years

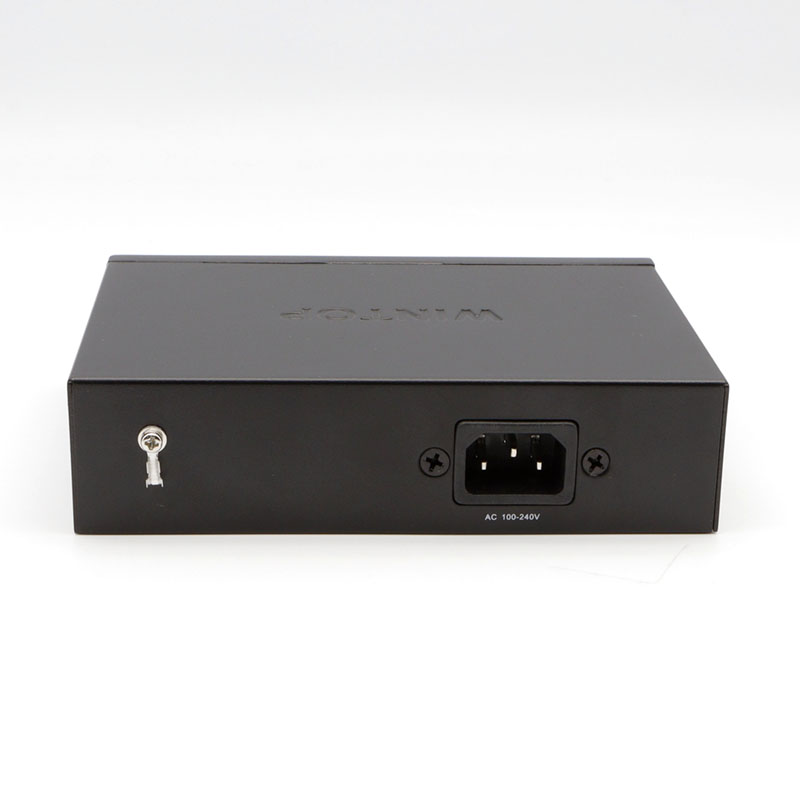

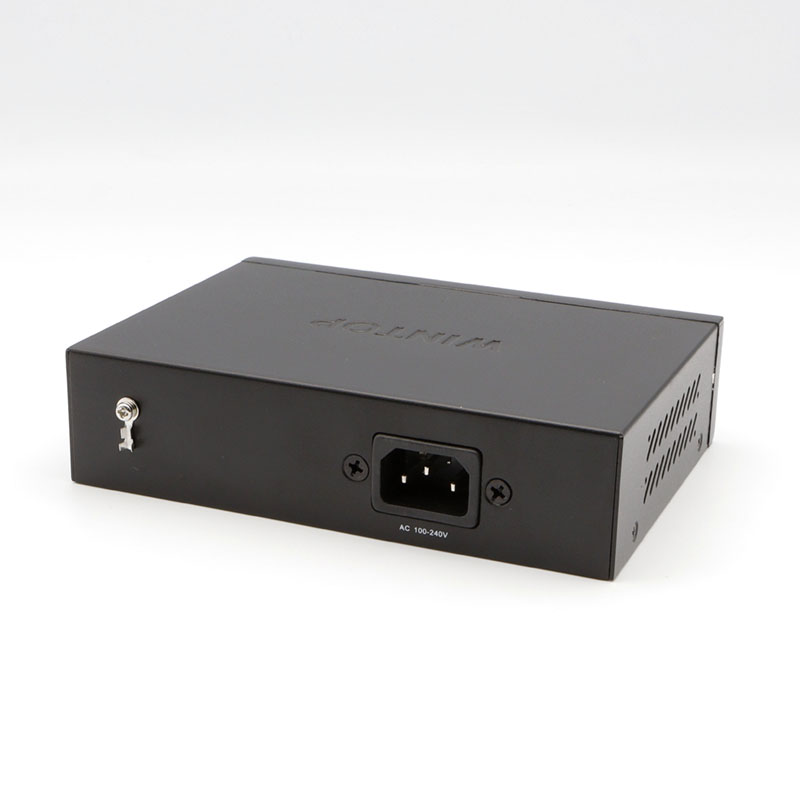

Power Requirements	100~240V AC
