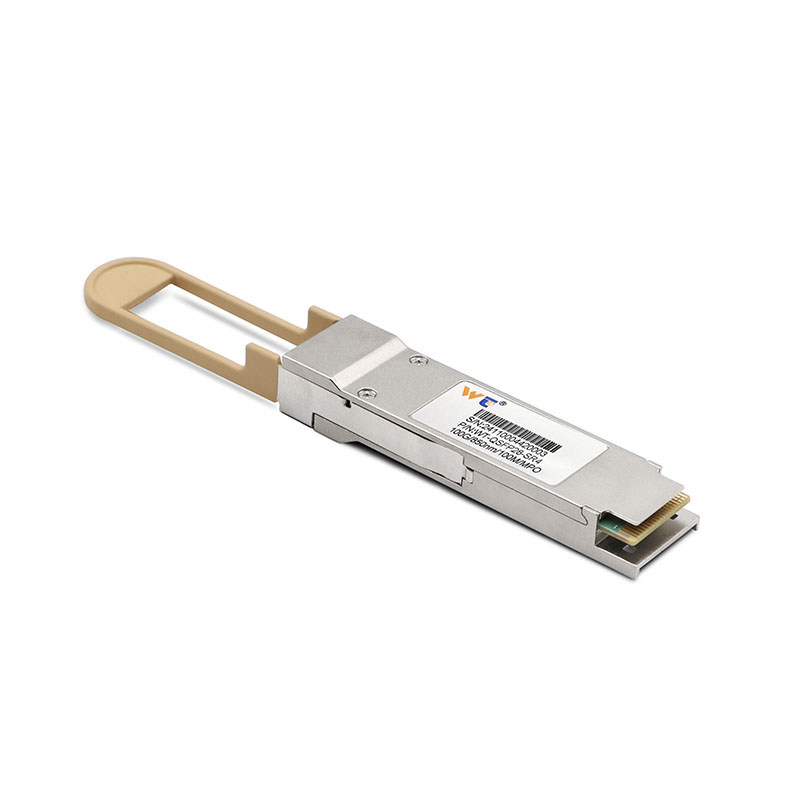

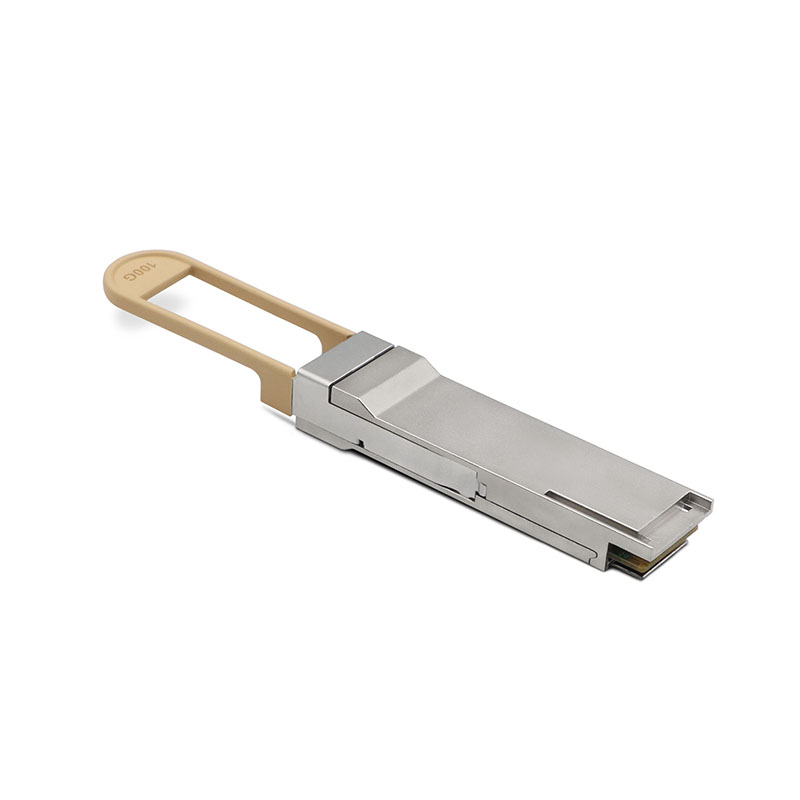

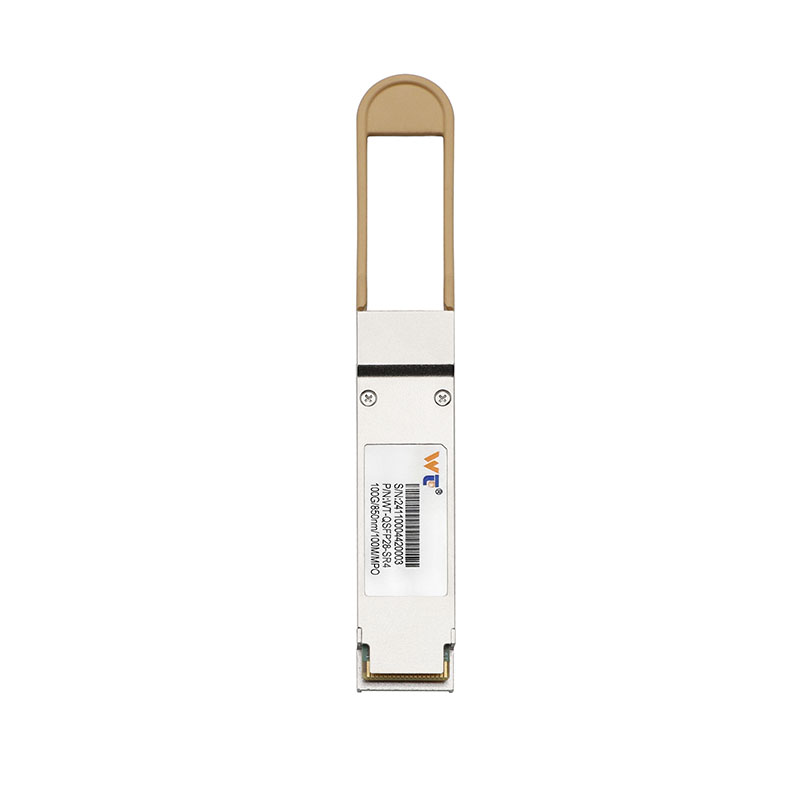

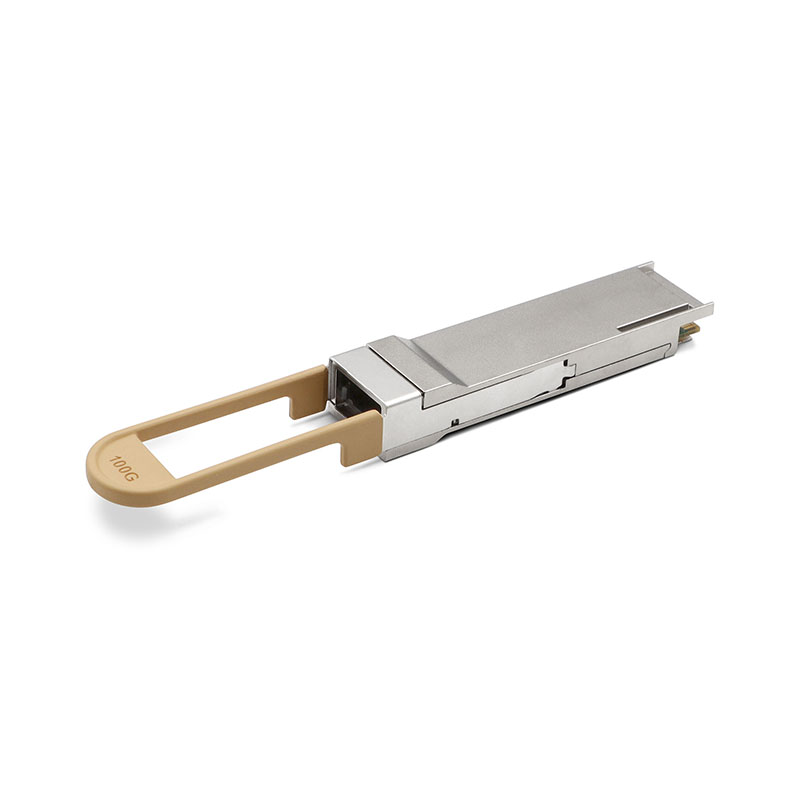

WT SFP Transceiver Module,WT-QSFP28-SR4,100GBase-SR4 QSFP28 Transceiver for MMF, 100 meters (MPO/MTP)

US$
144.00
FS P/N: WT-QSFP28-SR4
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
5-Year Warranty
5-Year Warranty
-
+
Product Highlights
  • Four-channel full-duplex transceiver modules

  • Transmission data rate up to 25.78125Gbit/s per channel

  • Up to 100m on OM4 Multimode Fiber (MMF)and 100m on OM4 MMF

  • Low power consumption <2.5W

  • Operating case temperature 0°C to +70°C

  • 3.3V power supply voltage

  • RoHS 6 compliant

  • Hot Pluggable QSFP form factor

  • MPO connector receptacle

  • Built-in digital diagnostic function


Center Wavelength850nm
Storage Temperature-40-85℃
Operating Relative Humidity5-95%
Supply Voltage3.6V
Power Dissipation<3.5W
Data Rate40Gbps
Average Output Power-8.4-2.4dBm
Extinction Ratio(Er)>3dB
OMA Sensitivity≥4.8dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty5 Years


  • Four-channel full-duplex transceiver modules

  • Transmission data rate up to 25.78125Gbit/s per channel

  • Up to 100m on OM4 Multimode Fiber (MMF)and 100m on OM4 MMF

  • Low power consumption <2.5W

  • Operating case temperature 0°C to +70°C

  • 3.3V power supply voltage

  • RoHS 6 compliant

  • Hot Pluggable QSFP form factor

  • MPO connector receptacle

  • Built-in digital diagnostic function
