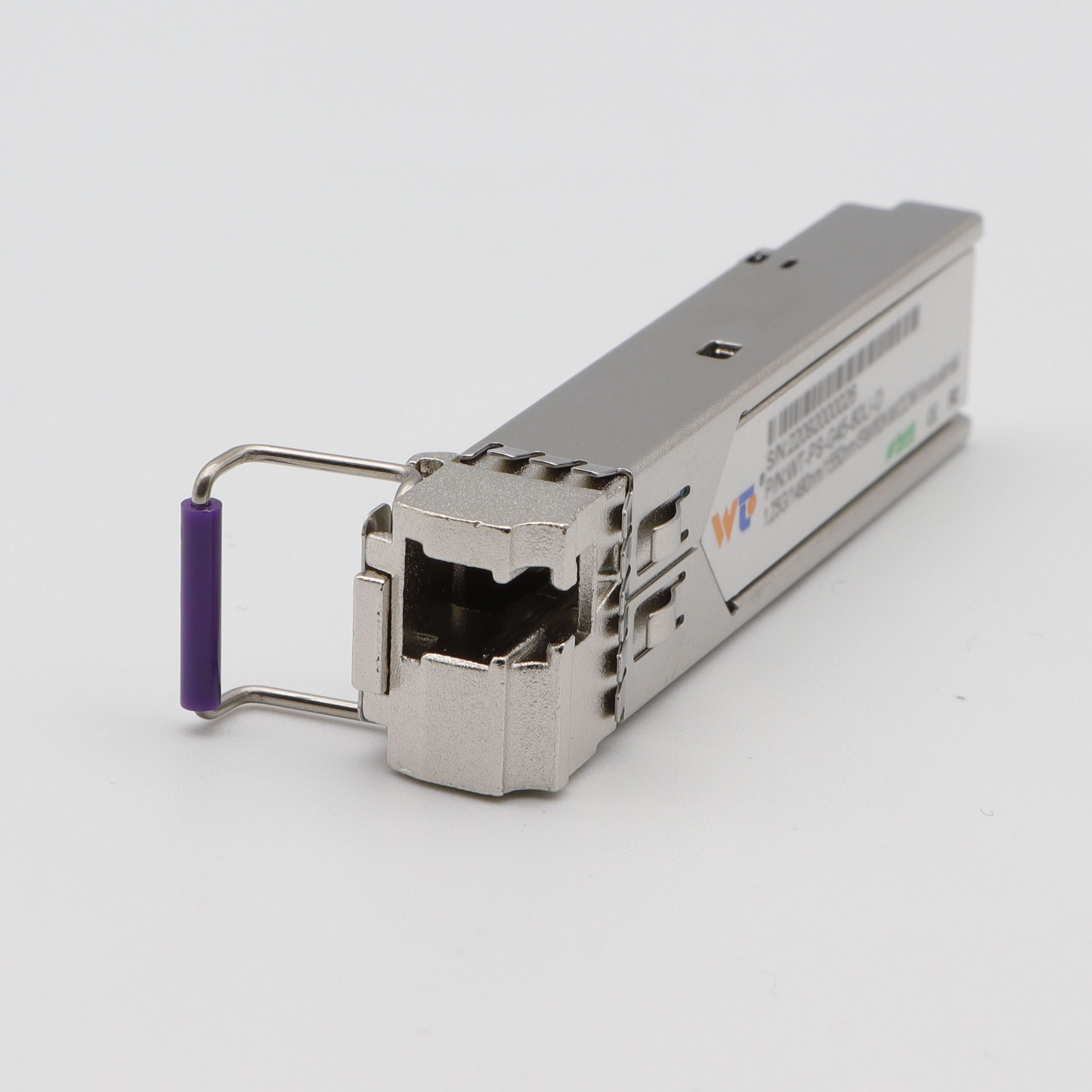

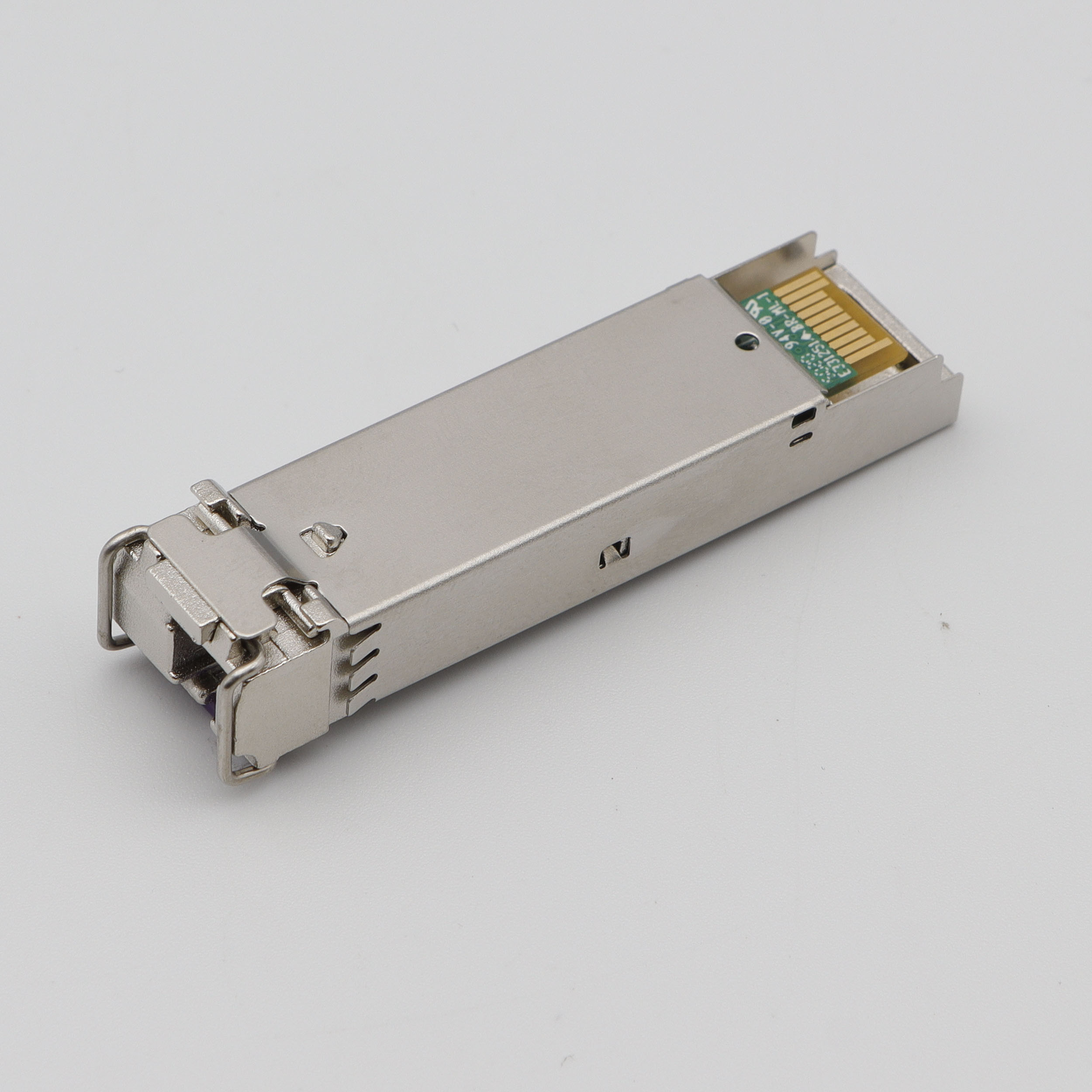

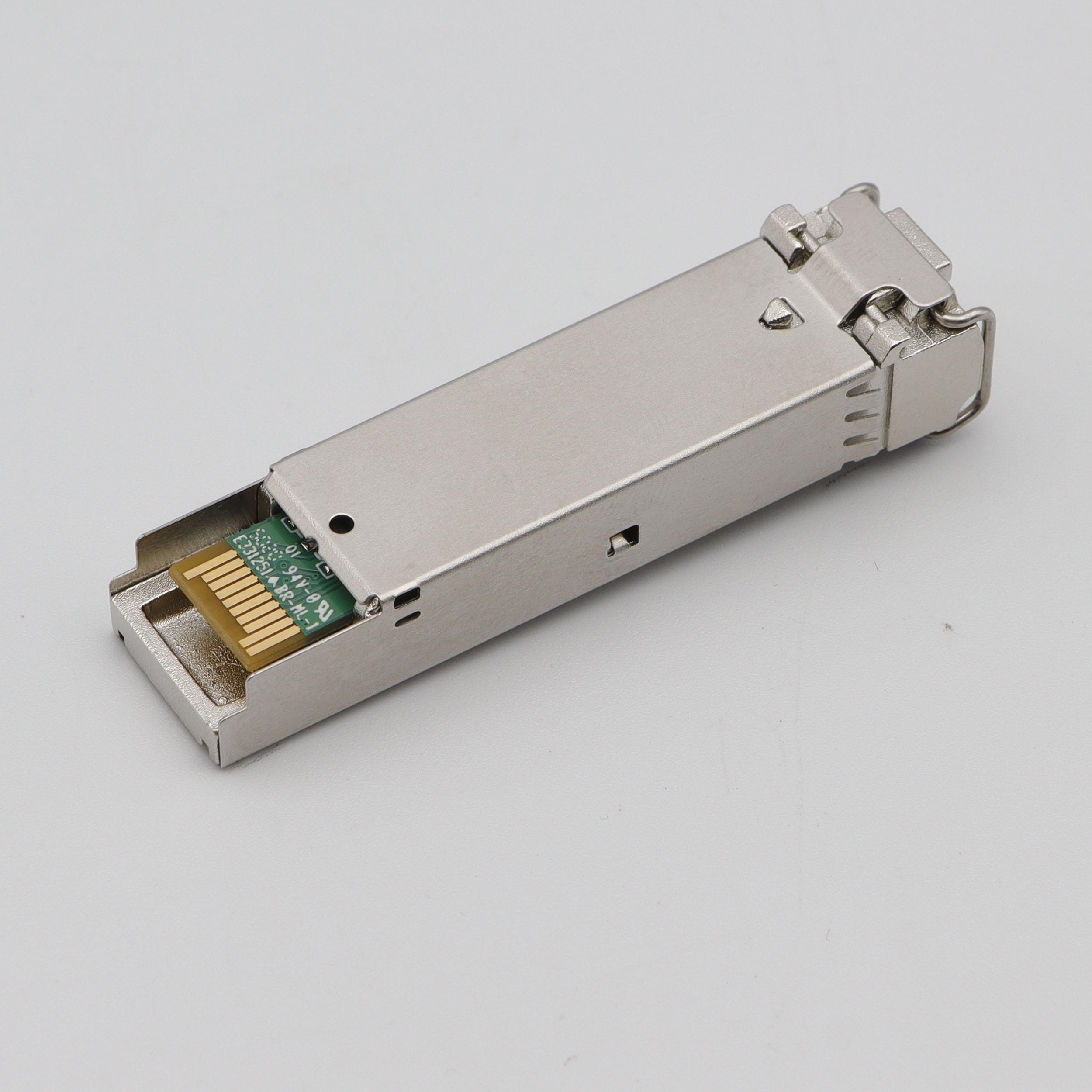

WT SFP Transceiver Module,WT-PS-G45-80L-D,1.25G SFP BU Transceivers,Tx1490nm & Rx1550nm, SMF ,80km,Commercial grade

US$
20.71
 FS P/N: WT-PS-G45-80L-D
120Sold 80Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
3-Year Warranty
3-Year Warranty
-
+
Product Highlights

  • SFP package with LC connector

  • 1550nm DFB Laser and photodetector

  • 1490nm DFB Laser and photodetector

  • Up to 80Km transmission on SMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825 compliant

  • Compatible with RoHS

  • Compatible with SFF8472


Center Wavelength1550/1490nm
Storage Temperature0－70℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1W
Data Rate1250Mbps
Average Output Power-2-5dBm
Extinction Ratio（Er）>8dB
Receiver Sensitivity（Rsen）≥-24dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty3 Years


  • Connectivity Solutions
  • Features

  • SFP package with LC connector

  • 1550nm DFB Laser and photodetector

  • 1490nm DFB Laser and photodetector

  • Up to 80Km transmission on SMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825 compliant

  • Compatible with RoHS

  • Compatible with SFF8472



  • Reviews (80)
No reviews yet
  • Resources
WTPS-G45-80L-D
WT SFP Transceiver Module,WT-PS-G45-80L-D,1.25G SFP BU Transceivers,Tx1490nm & Rx1550nm, SMF ,80km,Commercial grade

WT-PS-G45-80L-D

US$20.71
