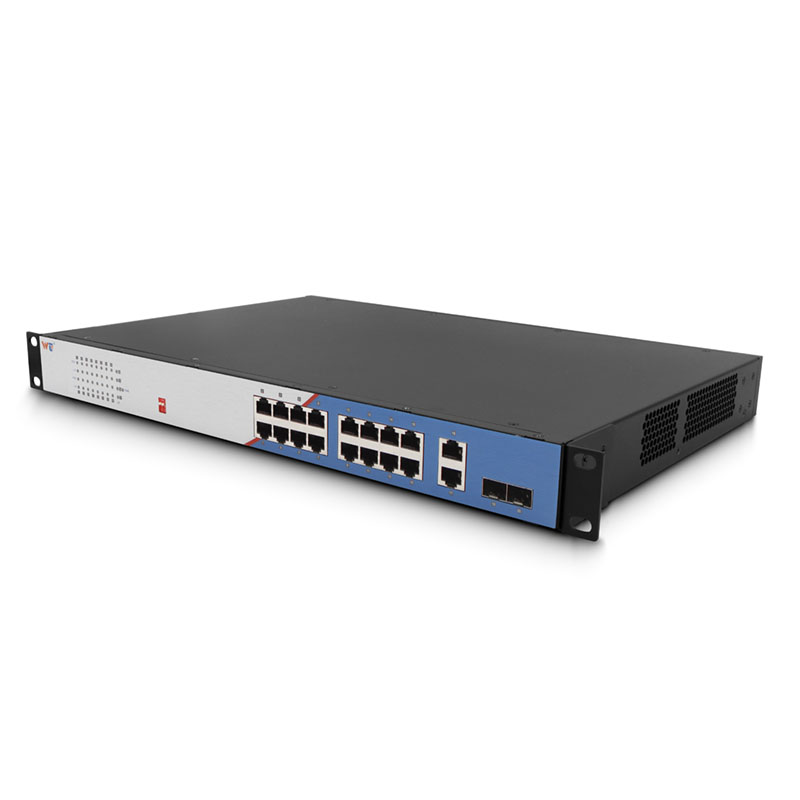

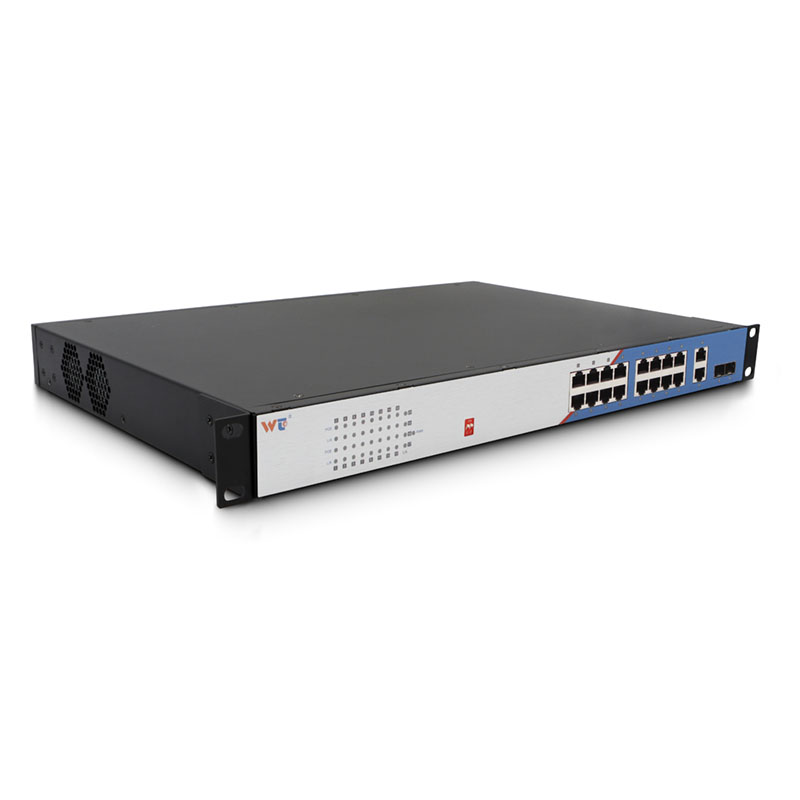

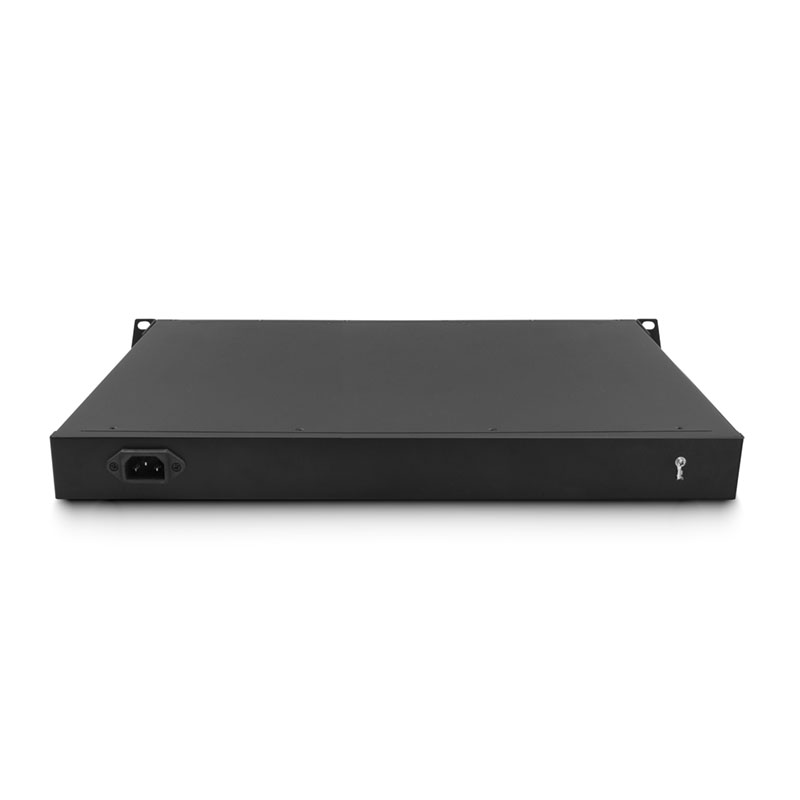

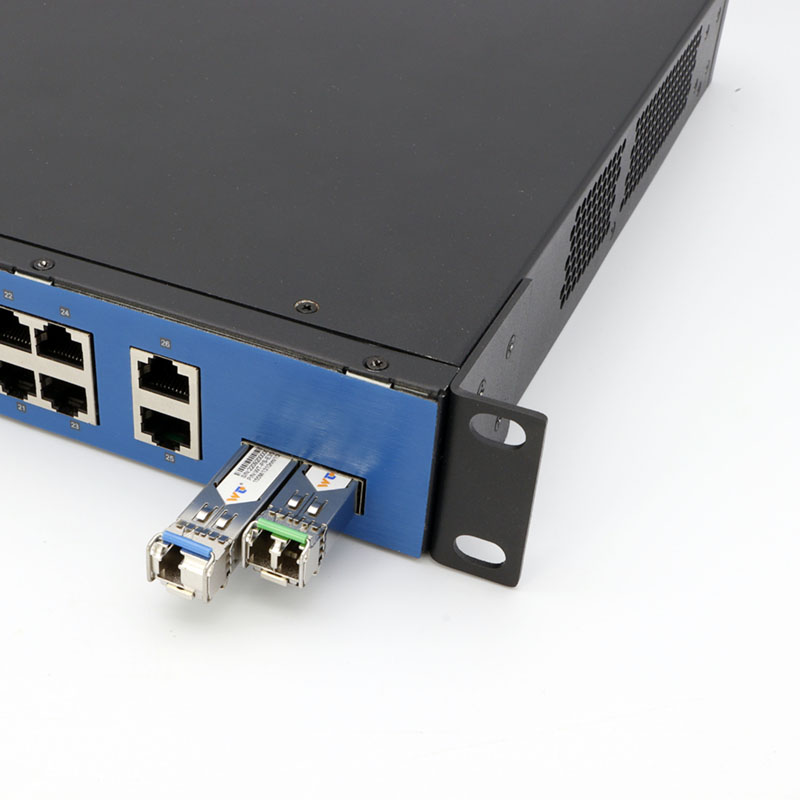

The CM2328-2GF26GT-24 POE Ethernet switch is a rack-mounted product with 2 Gigabit fiber ports and 2 Gigabit copper ports and 16 Gigabit POE copper ports.It features low power consumption, easy and flexible use, convenient mounting, superior performance and high performance-cost ratio.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT IEEE 802.3af/802.3at POE | Physical Properties | Enclosure: Metal, IP30-rated protection Size: 440*300*44 mm Weight: 4380 g Mounting method: Rack-mounted |
| Switching Feature | Back plane bandwidth: 40 Gbps List of MAC addresses: 8K Message buffer size: 4.1 Mbit | Environmental Restrictions | Working temperature: -20 ~ 75°C (-4 ~ 167°F) Storage temperature: -40 ~ 85°C ( 40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Ports | Gigabit fiber port: 1,000 Mbps Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported, transmission distance 0-100 m, POE power supply supported by 16 downlink ports. LED indicator: PWR, Link/ACT, POE | Standards & Certification | IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |
| LED Indicator | PWR, Link/ACT, POE | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: AC220V Power consumption: 260W | Warranty | Quality assurance: 3 years |
2 Gigabit fiber ports and 2 Gigabit copper ports, 16 Gigabit POE copper ports
Capable of working with full load under the temperature of-20℃~75℃
Voltage range: AC220 V
Impact resistant metal housing
Dial switch with one button for VLAN separation, one-button forced service at 10 M
VIP channels 1-8 ports (POE port QOS priority);
