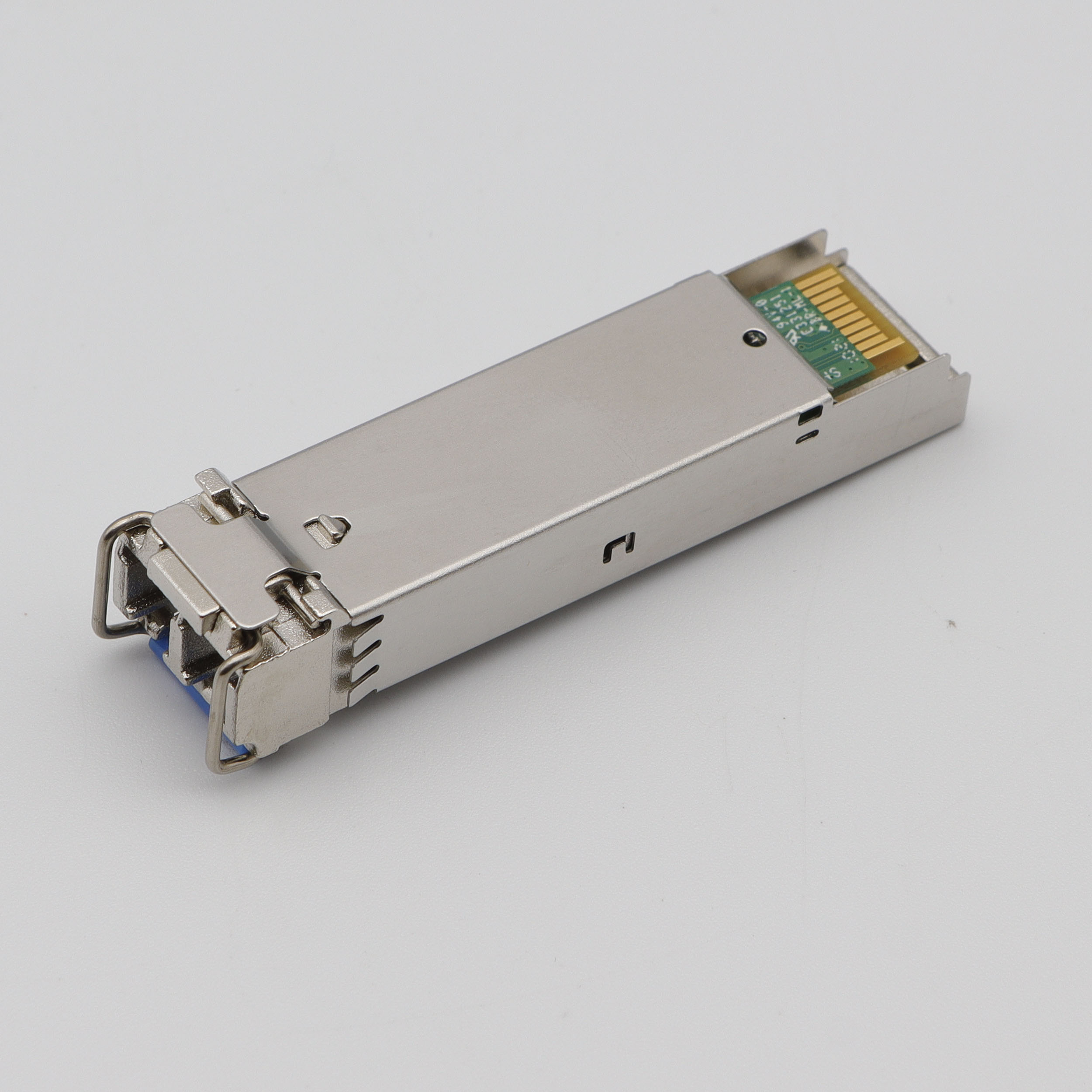

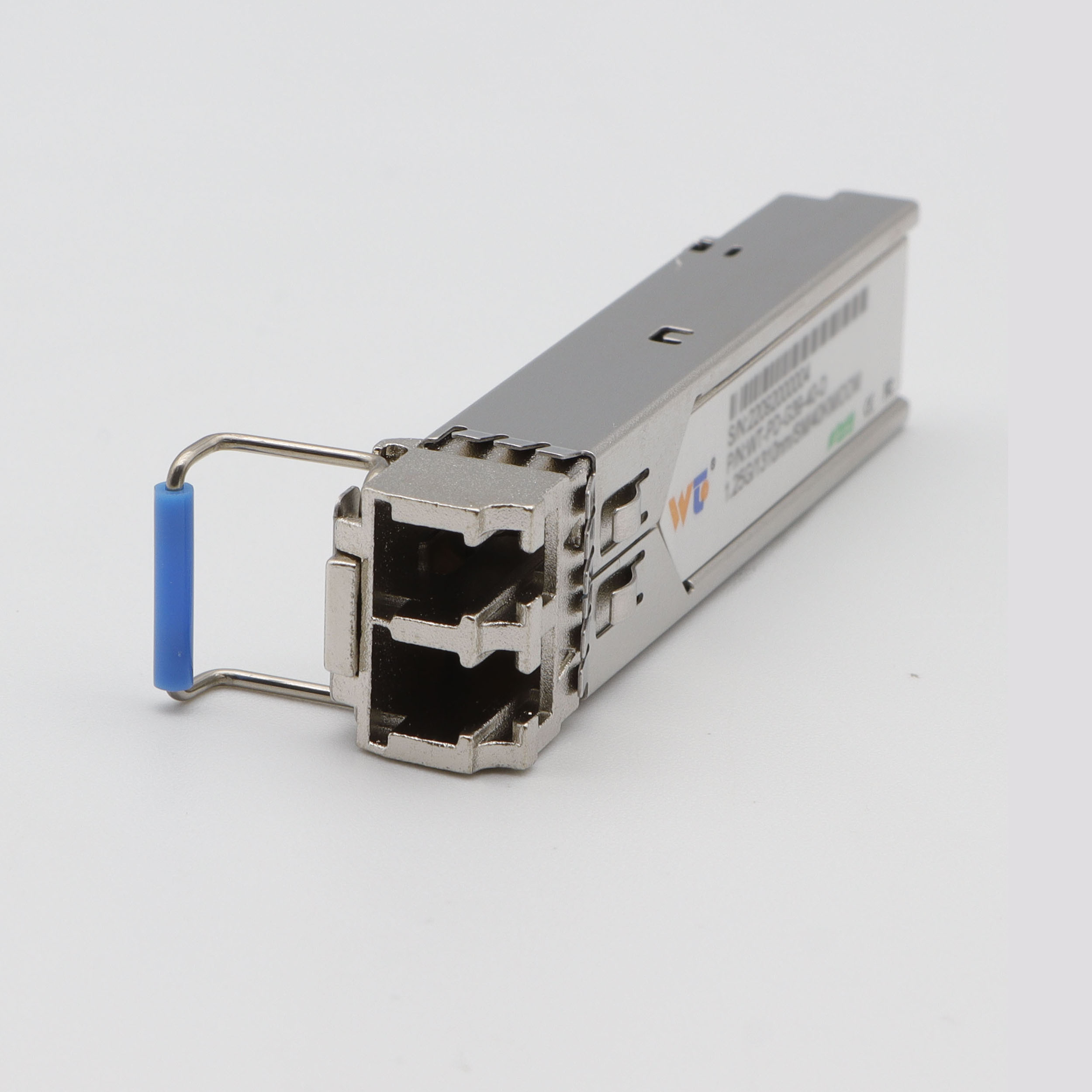

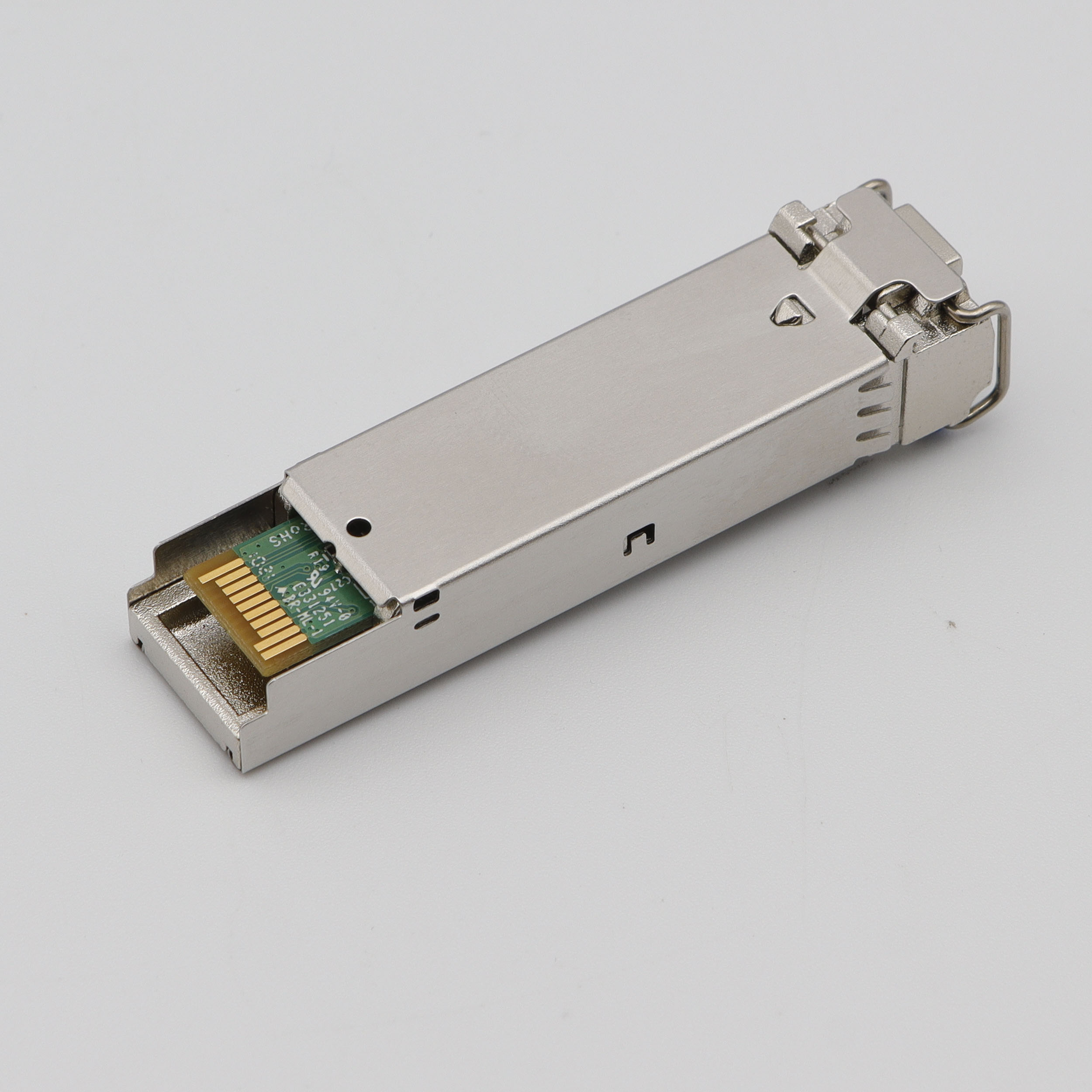

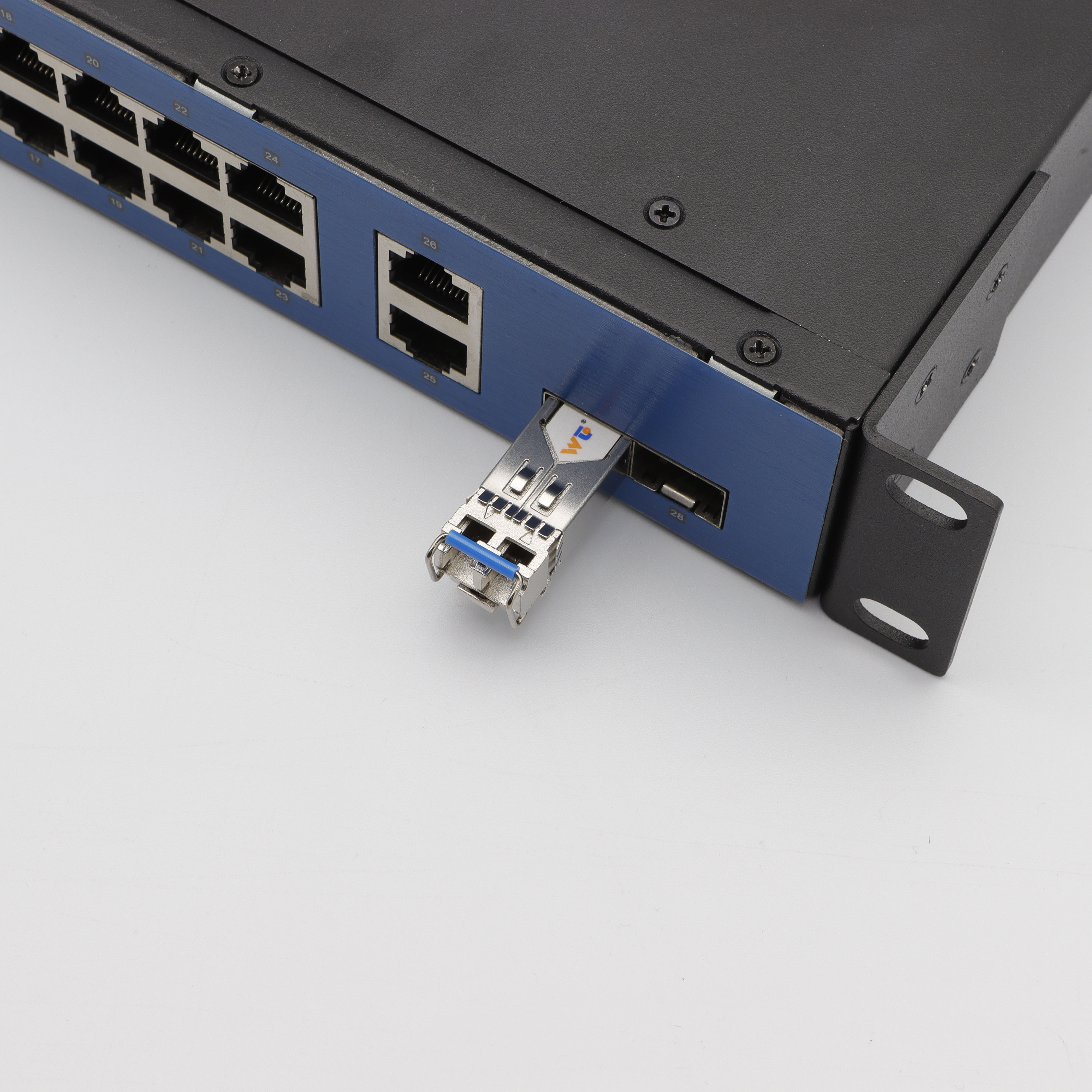

WT SFP Transceiver Module,WT-PD-E39-20I-D,155M SFP Transceiver Module，SMF ,1310nm, 20KM，Industrial grade

US$
8.23
 FS P/N: WT-PD-E39-20I-D
123Sold 89Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
5-Year Warranty
5-Year Warranty
-
+
Product Highlights

  • SFP package with LC connector

  • 1310nm FP laser and PIN photo detector

  • Up to 20Km transmission on SMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825  compliant

  • Compatible with RoHS

  • Digital Diagnostic SFF-8472 compliant

  • Signal Ground Isolated to Case


Center Wavelength1310nm
Storage Temperature-40－85℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1W
Data Rate155Mbps
Average Output Power-15－-3dBm
Extinction Ratio（Er）>8dB
Receiver Sensitivity（Rsen）≥-32dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty5 Years


  • Connectivity Solutions
  • Features

  • SFP package with LC connector

  • 1310nm FP laser and PIN photo detector

  • Up to 20Km transmission on SMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825  compliant

  • Compatible with RoHS

  • Digital Diagnostic SFF-8472 compliant

  • Signal Ground Isolated to Case


  • Reviews (89)
No reviews yet
  • Resources
WTPD-E39-20I-D
WT SFP Transceiver Module,WT-PD-E39-20I-D,155M SFP Transceiver Module，SMF ,1310nm, 20KM，Industrial grade

WT-PD-E39-20I-D

US$8.23
