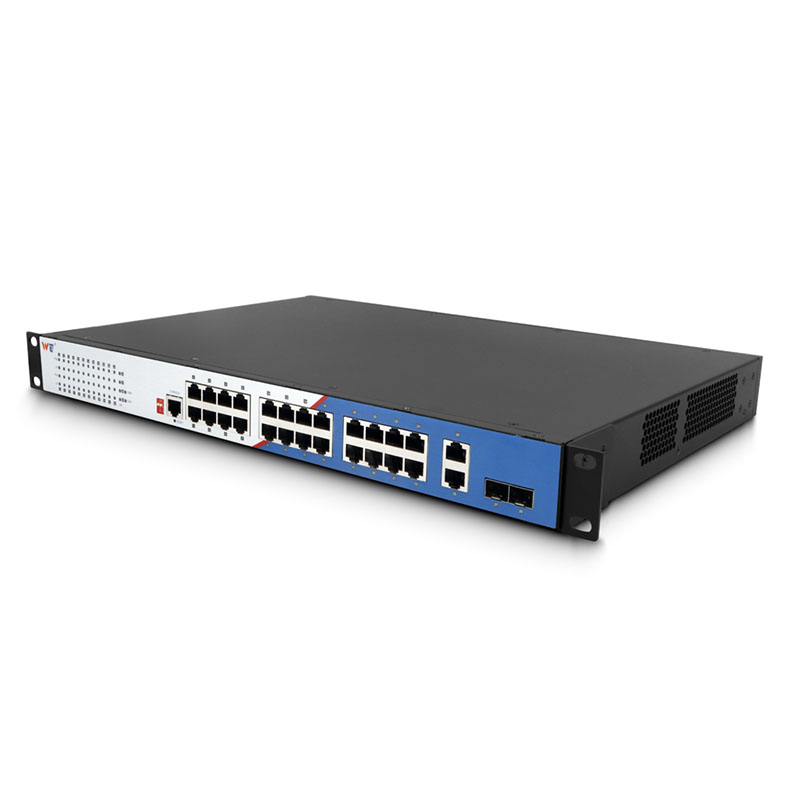

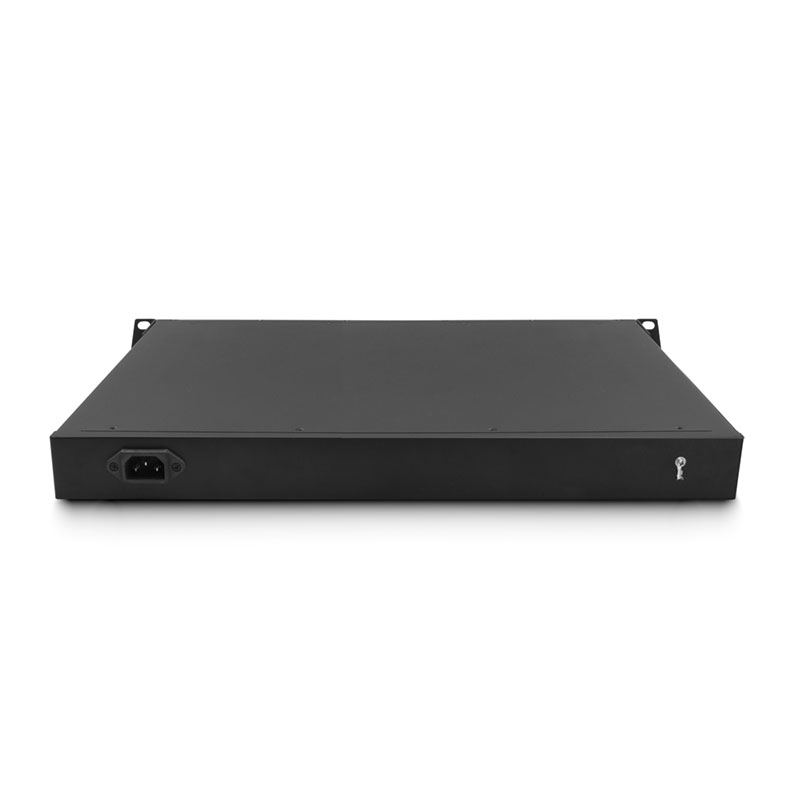

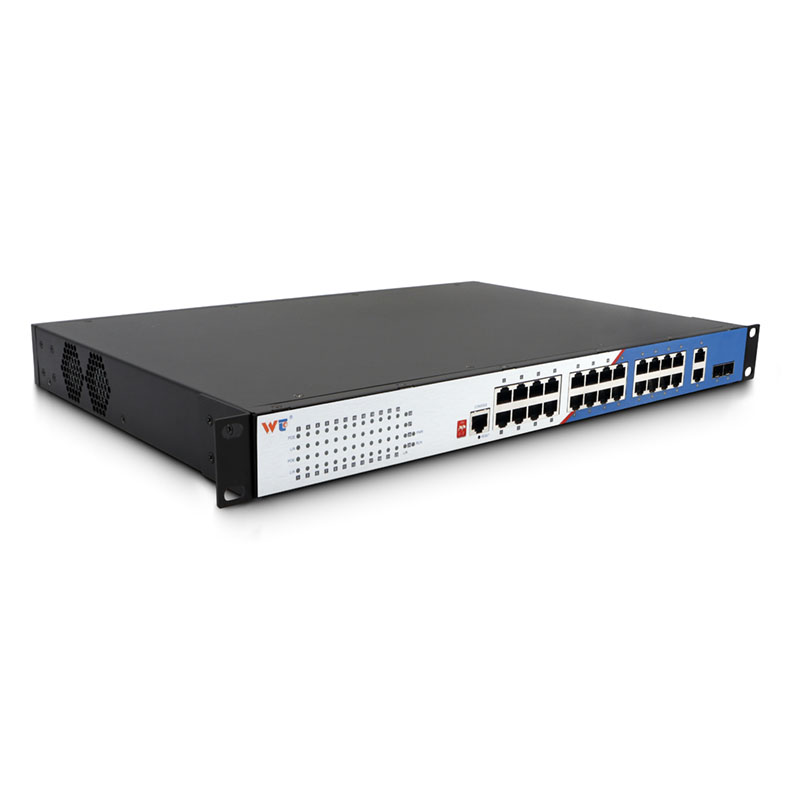

CM6328-2GF26GT-24POE is a network management frame of Ethernet switches, provide two gigabit light mouth and two gigabit port, 24 gigabit POE electricity, with IP30 protection grade, - the working temperature of -20 ~ 75 ℃, with super strong degree, designed for demanding applications of network communication, high EMI/EMS protection ability, every product has a 100% of the aging test to ensure quality.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3ab 1000BaseTX IEEE 802.3z 1000BaseFX IEEE 802.3af/802.3at POE IEEE 802.3x flow control IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1p Cos IEEE 802.1Q VLAN | Physical Properties | Enclosure: Metal IP30-rated protection Size: 440 mm*300 mm*44 mm Weight: 4380 g Mounting method: Rack-mounted |
| Protocols | IGMP Snooping, GMRP, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, SSH, Telnet, Syslog, LLDP, EtherNet/IP, Modbus/TCP MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9 | Environmental Restrictions | Working temperature: -20 ~ 75°C (-4 ~ 167°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Switching Feature | Qos queue: 8 VLAN-ID: 1-4094 Back plane bandwidth: 40 Gbps List of MAC addresses: 8K Message buffer size: 4 Mb | Standards & Certification | EMI: FCC Part 15/CISPR22 (EN55022): Class A EMS: IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |

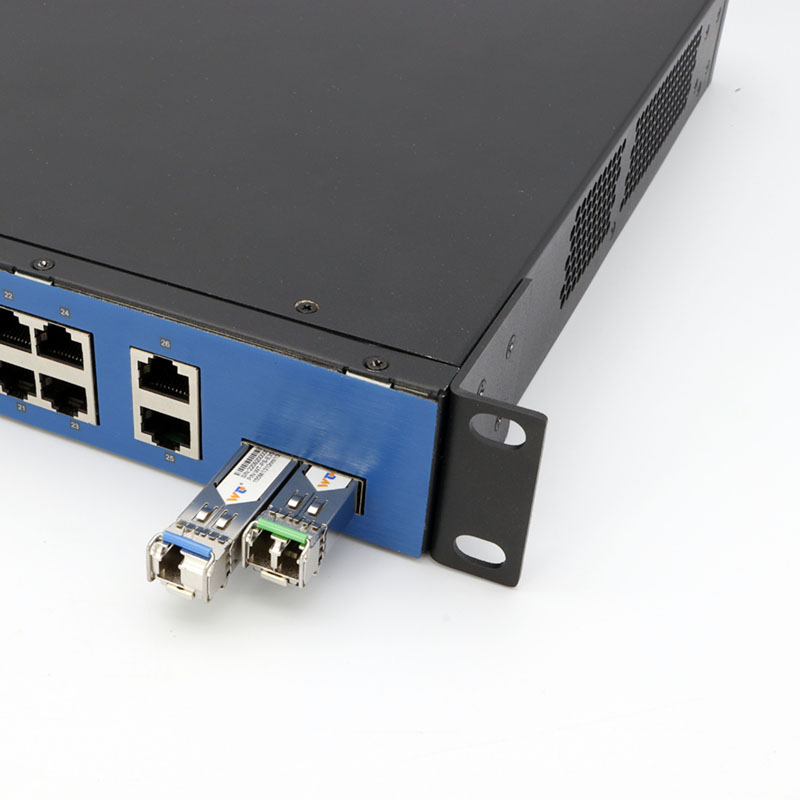

| Ports | Serial port: RS-232 (port type: RJ45 slot) Gigabit fiber port: 1000 Mbps (port type: SFP slot) Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported. | MTBF | Mean Time Between Failures: 500,000 hours |
| LED Indicator | PWR, Link/ACT, RUN,POE | Warranty | Quality assurance: 3 years |
| Power Requirements | Input voltage: AC220V Input current Up to 200 mA |
Support 4K 802.1Q VLANs and GVRP, simplified network planning
Support IGMP Snooping and GMRP for filtering multicast traffic
Support SSH remote security management configuration
Dial switches enable ringing, port isolation and forced 10M
QoS (IEEE 802.1p and DSCP) improves data transfer certainty
RMON providing more effective network monitoring and prediction capabilities
Port mirroring function to assist in online troubleshooting
Support 255 vlan-based and mac-based ACL access controls
VIP channels 1-8 ports (POE port QOS priority);
CM6328-2GF26GT-24POE
