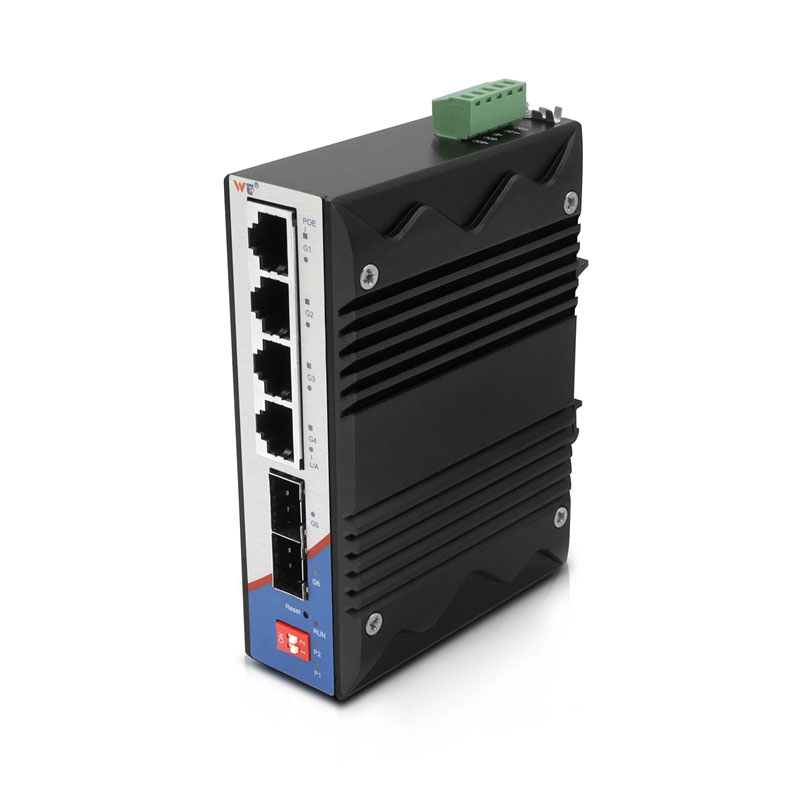

RS636-2GF4GT-4POE is a guide rail managed industrial Ethernet switch that provides 2 Gigabit fiber ports and 4 Gigabit POE copper ports via a fan-free and low-power design with industrial rating level 4 and IP40-rated protection. Each product, featuring an operating temperature of -40 - 85°C, superior solidness, design for network communications in harsh applications, high EMI/EMS protection, has been 100% qualified in aging tests.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX and 1000BaseT IEEE 802.3af/802.3at POE IEEE 802.3x flow control IEEE 802.1d-2004 STP protocol IEEE 802.1w RSTP protocol IEEE 802.1p Qos IEEE 802.1q VLAN SNMPv1/v2c HTTP, DHCP Client | Physical Properties | Enclosure: Aluminum enclosure, IP40-rated protection Size: 116 × 85 × 37 mm Weight: 430 g Mounting method: Guide rail type |
| Switching Feature | Backplane bandwidth: 12 Gbps List of MAC addresses: 2K Chip buffer size: 12 KByte | Environmental Restrictions | Working temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Ports | Fiber port: 1000 Mbps Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported. | Standards & Certification | IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |
| LED Indicator | P1, P2, RUN, L/A,POE | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: DC 48~57 V (redundancy) Full-load power consumption: 5W | Warranty | Quality assurance: 5 years |
Support the 802.1Q VLAN of 4K range
Support the web page management configuration; and hardware one-button recovery of factory settings
Dual power inputs with a wide range of 48-57 VDC
Dial switches enable ringing, port isolation and forced 10M
QoS (IEEE 802.1p and DSCP) improves data transfer certainty
Port mirroring feature assists in online troubleshooting and allows for data analysis and monitoring
Port aggregation increases bandwidth and enhances the reliability of network connection
Spanning Tree Protocol STP/RSTP ring redundancy
Port loop detection reduces the impact of access loop on the entire network
No reviews yet
RS636-2GF4GT-4POE，WT Layer 2 Managed POE Switch，4x10/100/1000BASE-T RJ45，2*1G SFP ，Layer 2 Managed POE Switch
RS636-2GF4GT-4POE
