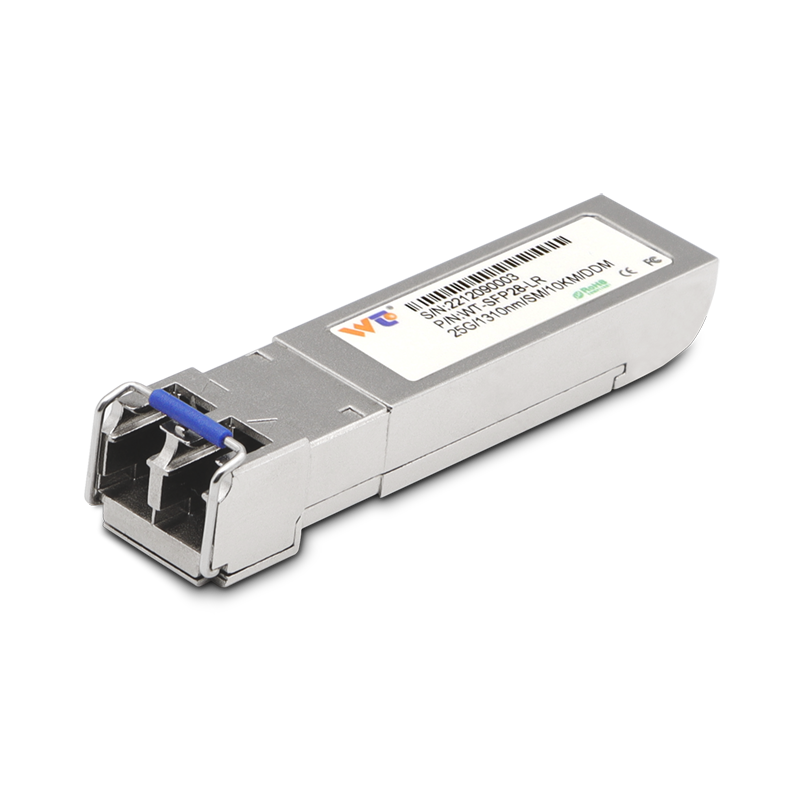

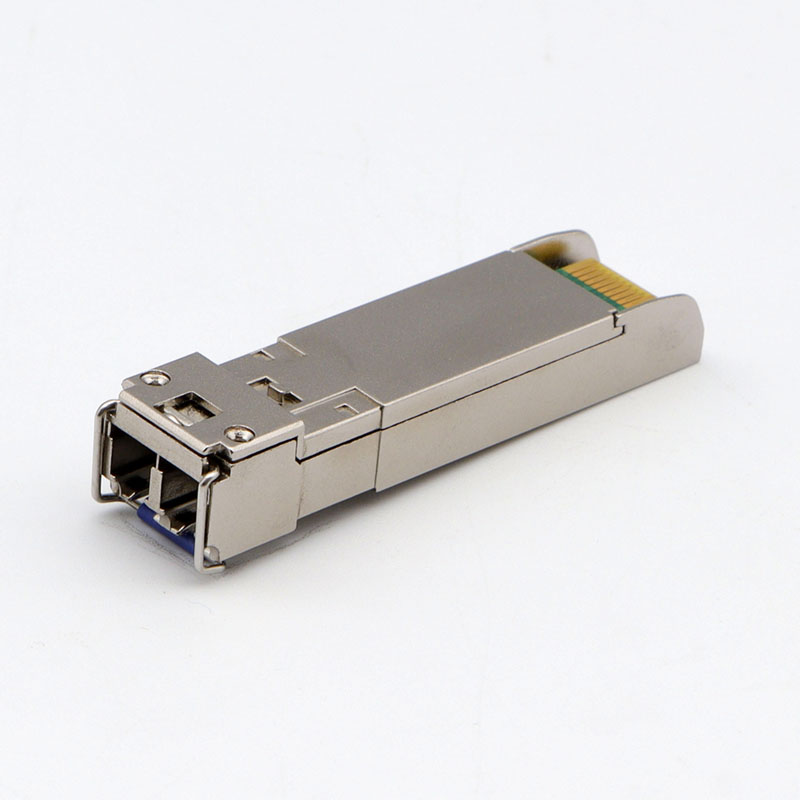

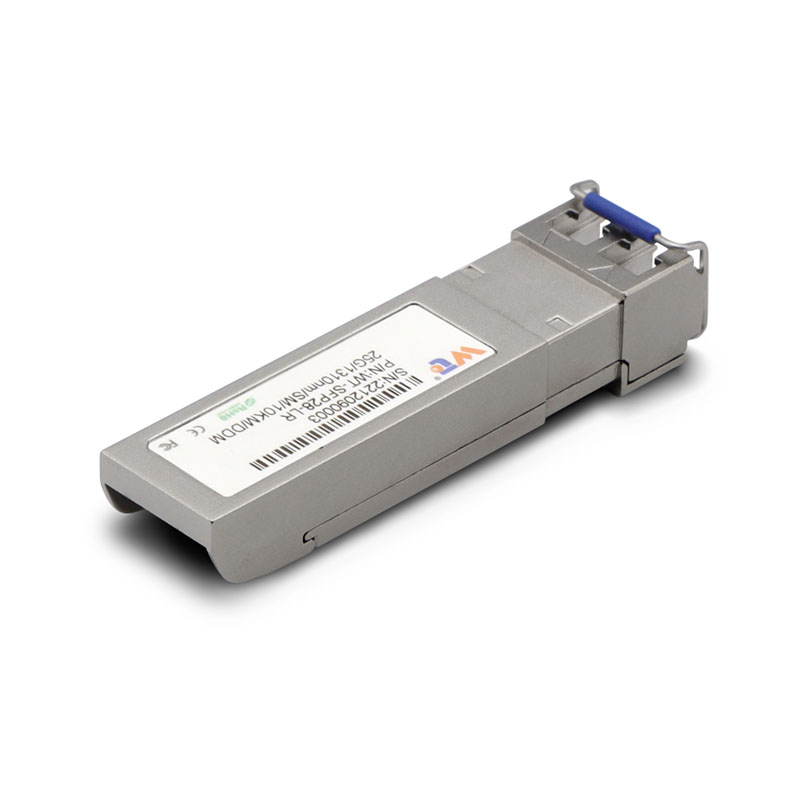

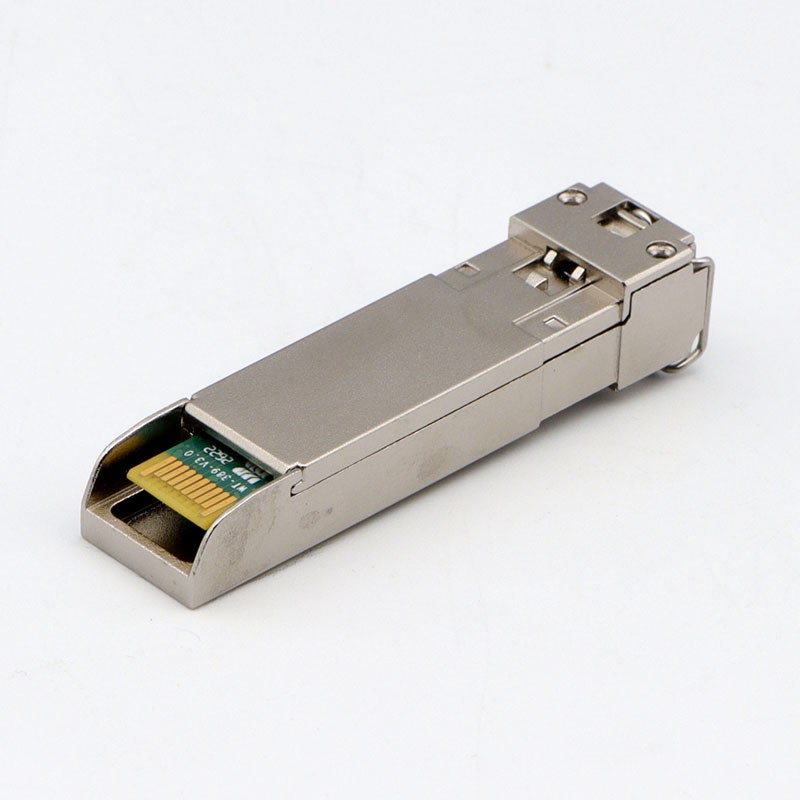

WT SFP Transceiver Module,WT-SFP28-LR,25Gb/s SFP28 LR Transceiver, 1310nm, up to 10 km,Commercial grade

US$
77.14
 FS P/N: WT-SFP28-LR
131Sold 40Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
3-Year Warranty
3-Year Warranty
-
+
Product Highlights

  • Compatible with CPRI option10 24.33Gbps and 25GBASE 25.78Gbps

  • Up to 10km transmission on SMF

  • 1310nm DML laser transmitter

  • SFP28 MSA compliant

  • Built-in digital diagnostic functions

  • Single +3.3V power supply

  • Operating case temperature: -40 to +85 °C or 0 to +70 °C

  • RoHS 6 Compliant


Center Wavelength1310nm
Storage Temperature0－70℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1.5W
Data Rate25Gbps
Average Output Power-30dBm
Extinction Ratio（Er）>3.5dB
OMA Sensitivity≥-13dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty3 Years


  • Connectivity Solutions
  • Features

  • Compatible with CPRI option10 24.33Gbps and 25GBASE 25.78Gbps

  • Up to 10km transmission on SMF

  • 1310nm DML laser transmitter

  • SFP28 MSA compliant

  • Built-in digital diagnostic functions

  • Single +3.3V power supply

  • Operating case temperature: -40 to +85 °C or 0 to +70 °C

  • RoHS 6 Compliant
