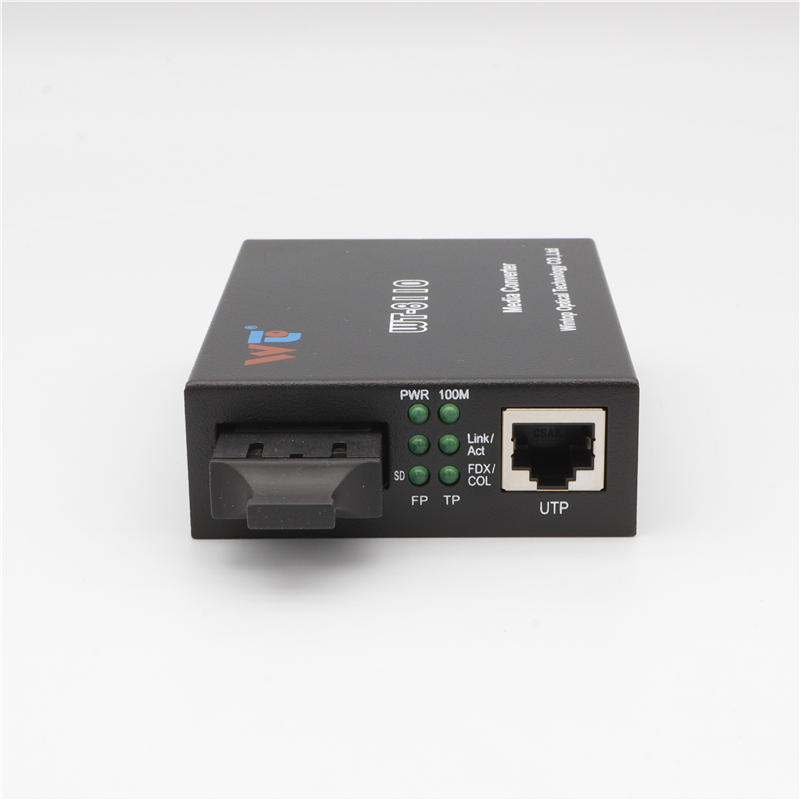

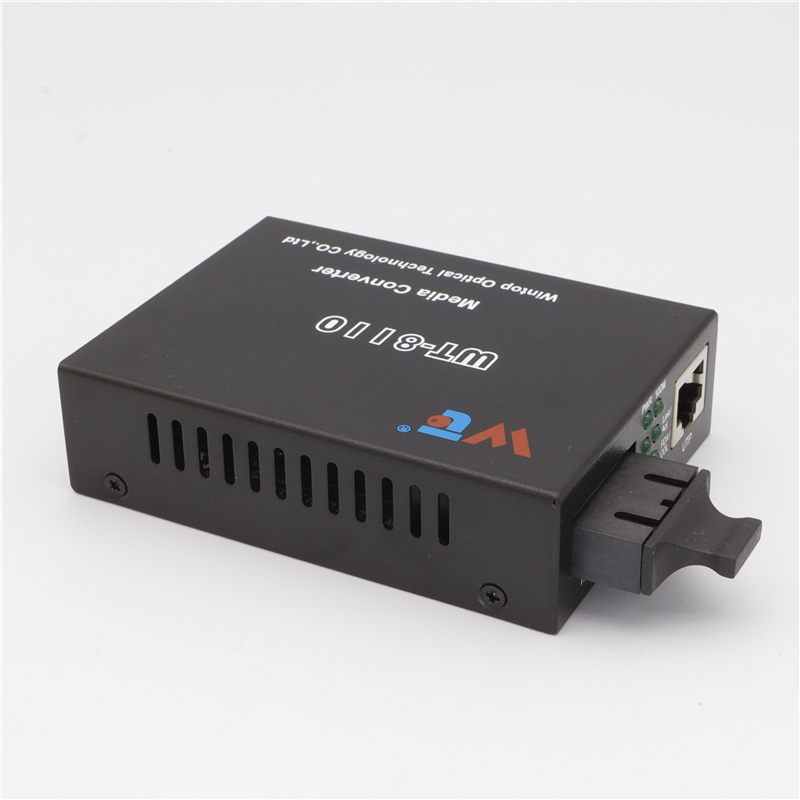

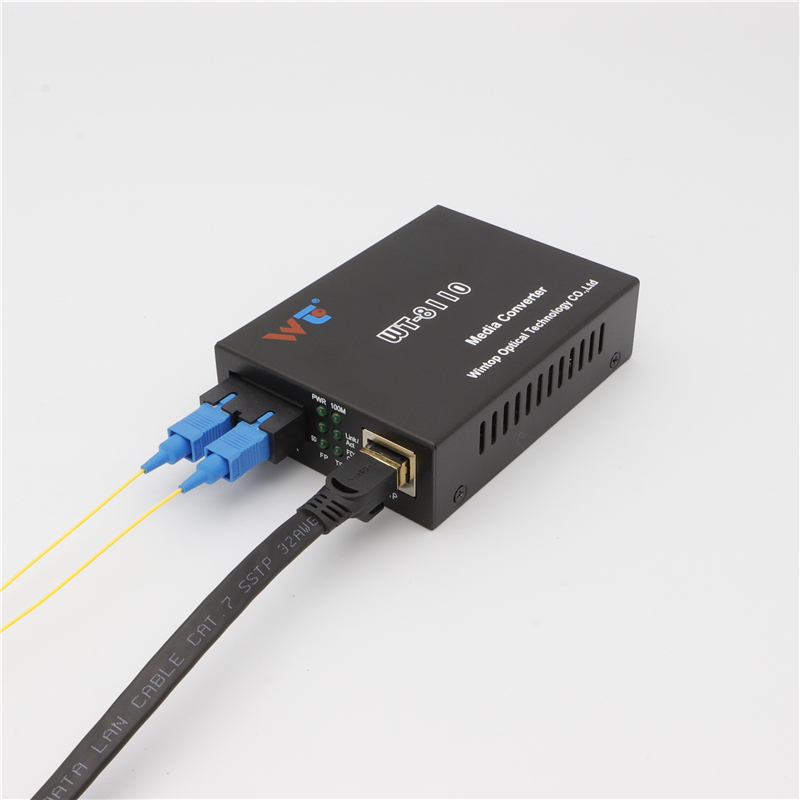

The 8110G series of media converter are capable of photoelectric conversion between 10/100/1000Base-T and 1000Base-X networks.
The product includes a 10/100/1000M electrical port and a 1000M optical port, which can meet the needs of long-distance, high-speed and high-bandwidth Fast Ethernet working group users, achieving a transmission distance of up to 80KM, and the performance of the product is stable and reliable.
| Applicable Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX and 100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX | Physical Properties | 94mm(L)x70mm(W)x26mm(H) |
| Ports | 1*（RJ45） 10/100/1000Base-TX 1*（SFP） 1000Base-FX | Environmental Restrictions | Operating temperature: -20~ 60°C (-4 ~ 140°F) Storage temperature : -20 ~ 70°C (-4 ~ 158°F) Relative humidity of the environment: 5 ~ 90% (non-condensing) |
| LED Indicator | PWR, Link/Act FP, Link/Act TP, SD, 1000M, FDX/COL | Warranty | Quality assurance: 3 years |
| Power Requirements | External power supply: DC 5V |
Support 1000Base-X standard
The longest transmission distance can reach 120Km
Support MDI/MDI-X adaptation
10/100/1000Mbps, full-duplex/half-duplex auto-negotiation
Built-in efficient switching core, CRC parity
Supports half-duplex back pressure control and full-duplex flow control
