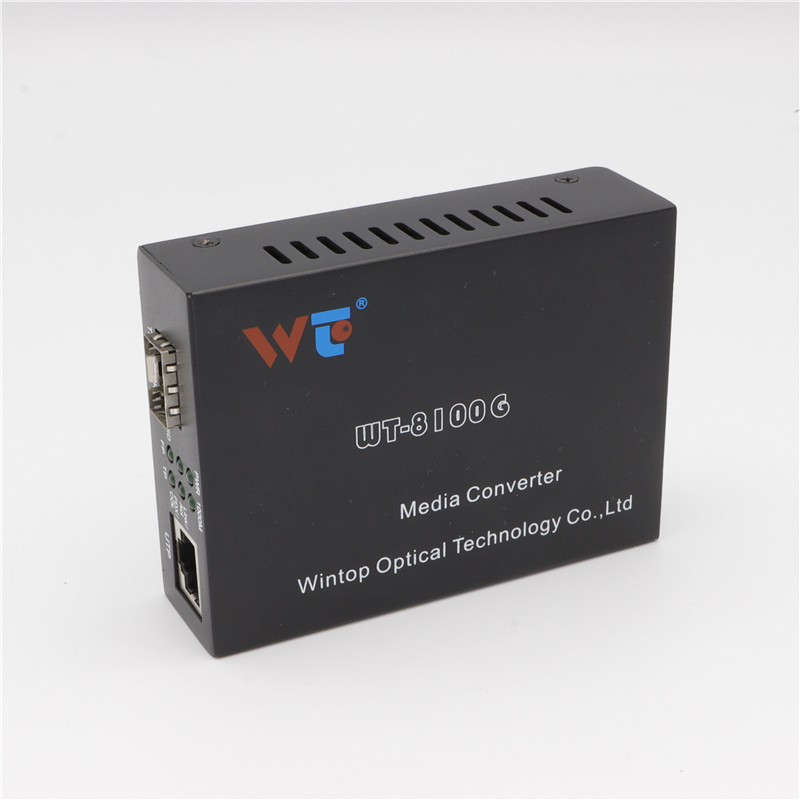

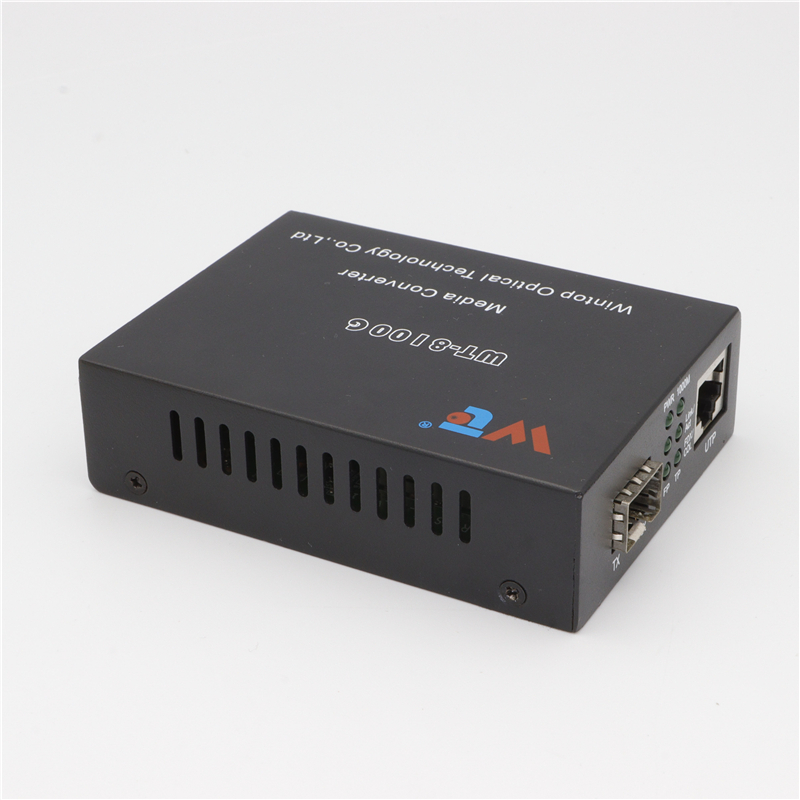

8110 optical transceivers are capable of optical-to-electrical conversion between 10/100Base-TX and 100Base-FX networks. The product includes 1* 10/100M electrical port and 1* 100M optical port, which can meet the needs of users of long-distance, high-speed and high-bandwidth fast Ethernet working groups and realize a transmission distance of up to 80KM. The performance of the product is stable and reliable.

Applicable Standards	IEEE 802.3   10Base-T IEEE 802.3u  100Base-TX and 100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z  1000Base-SX/LX	Physical Properties	94mm(L)x70mm(W)x26mm(H)
Ports	1*（RJ45） 10/100/1000Base-TX 1*（SFP） 1000Base-FX	Environmental Restrictions	Operating temperature: -20~ 60°C (-4 ~ 140°F) Storage temperature : -20 ~ 70°C (-4 ~ 158°F) Relative humidity of the environment: 5 ~ 90% (non-condensing)
LED Indicator	PWR, Link/Act FP, Link/Act TP, SD, 1000M, FDX/COL	Warranty	Quality assurance: 3 years

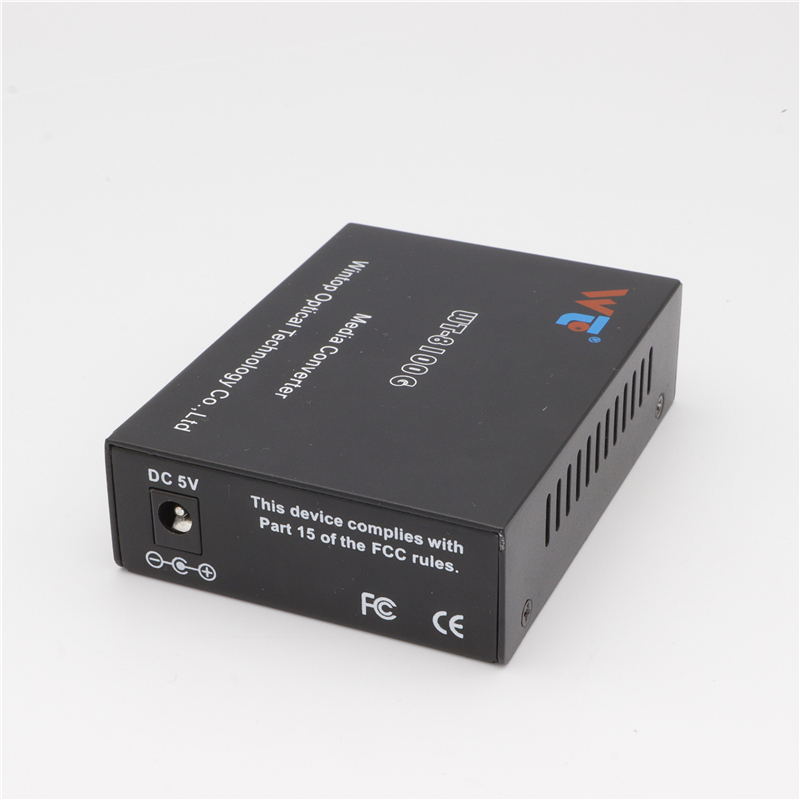

Power Requirements	External power supply: DC 5V
