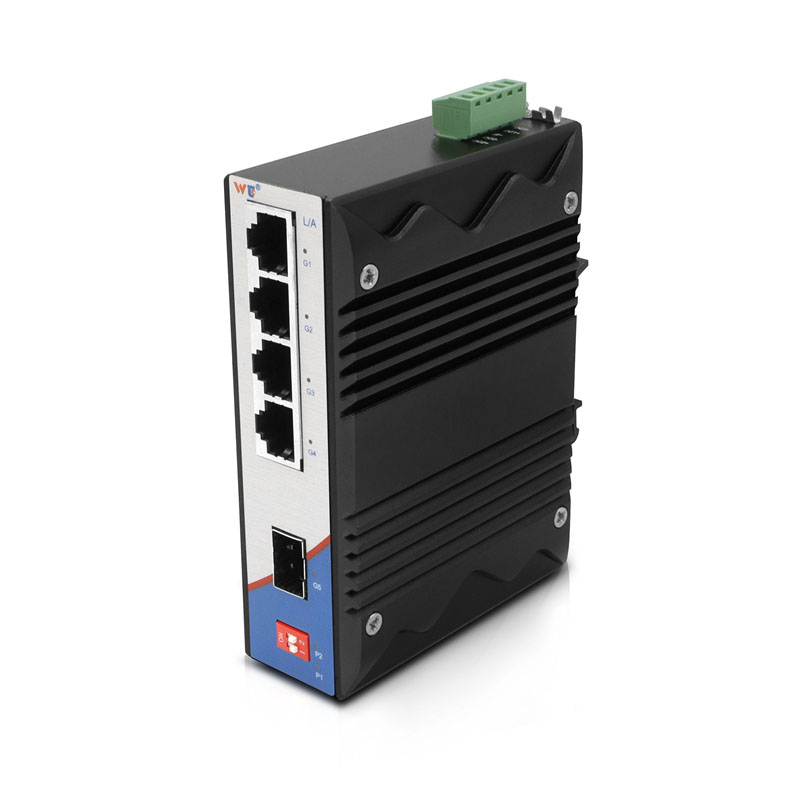

RS235-1GF4GT is an industrial Ethernet switch with extended temperature ranges developed by Wintop Optical to fulfill needs in industries including smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on.
| Applicable Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT | Physical Properties | Enclosure: Aluminum enclosure, IP40-rated protection Size: 116 x 85x 37 mm Weight: 430g Mounting method: Guide rail type |
| Switching Feature | Back plane bandwidth: 10 Gbps List of MAC addresses: 2K Chip buffer size: 12 KByte | Environmental Restrictions | Working temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Ports | Fiber port: 1000 Mbps Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported. | Standards & Certification | IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please go to the official website of Wintop Optical for the latest certification status. |
| LED Indicator | P1, P2, L/A | MTBF | Mean Time Between Failures: 500,000 hours |
| Power Requirements | Input voltage: DC9~48V (redundancy) Full-load power consumption: 5W Input current: Maximum DC current, 400mA | Warranty | Quality assurance: 5 years |
1 Gigabit fiber port and 4 Gigabit copper ports;
Capable of working with full load under the temperature of -40 ~ 85 ˚C;
The voltage ranges between DC9~48V, and dual redundant power supply is provided;
IP40-rated protection, fan-free design, shock-resistant aluminum enclosure;
Dial switch with one button for VLAN separation
