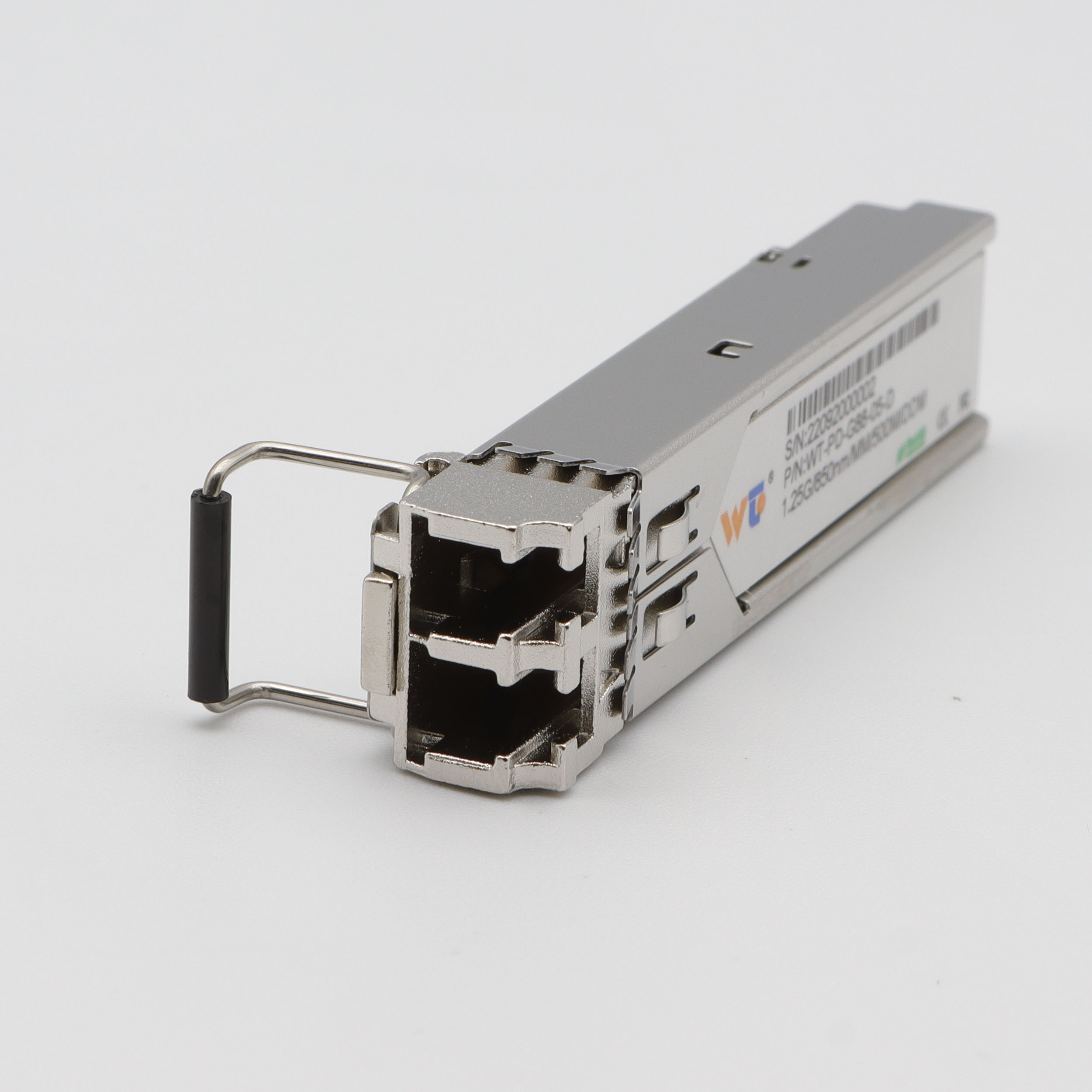

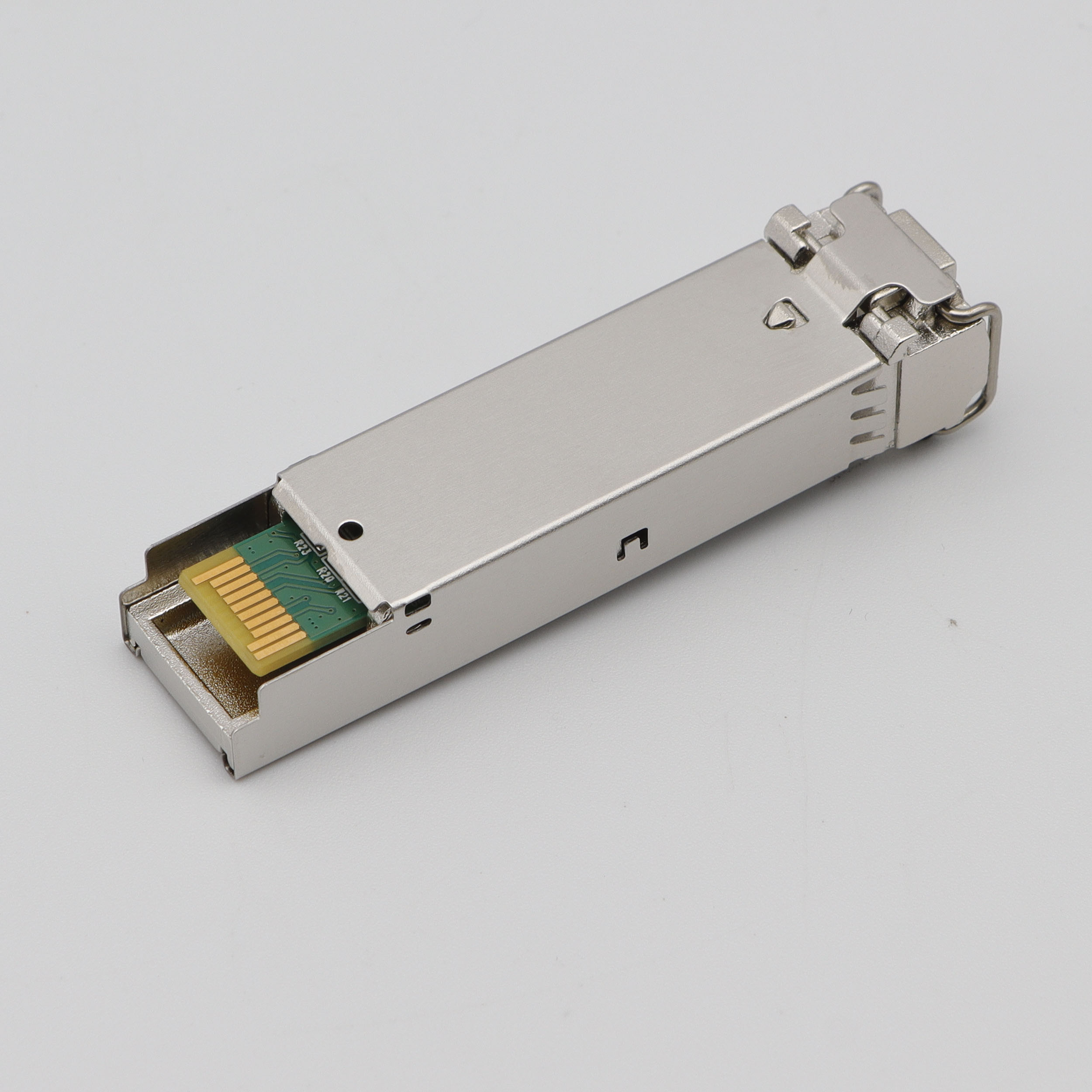

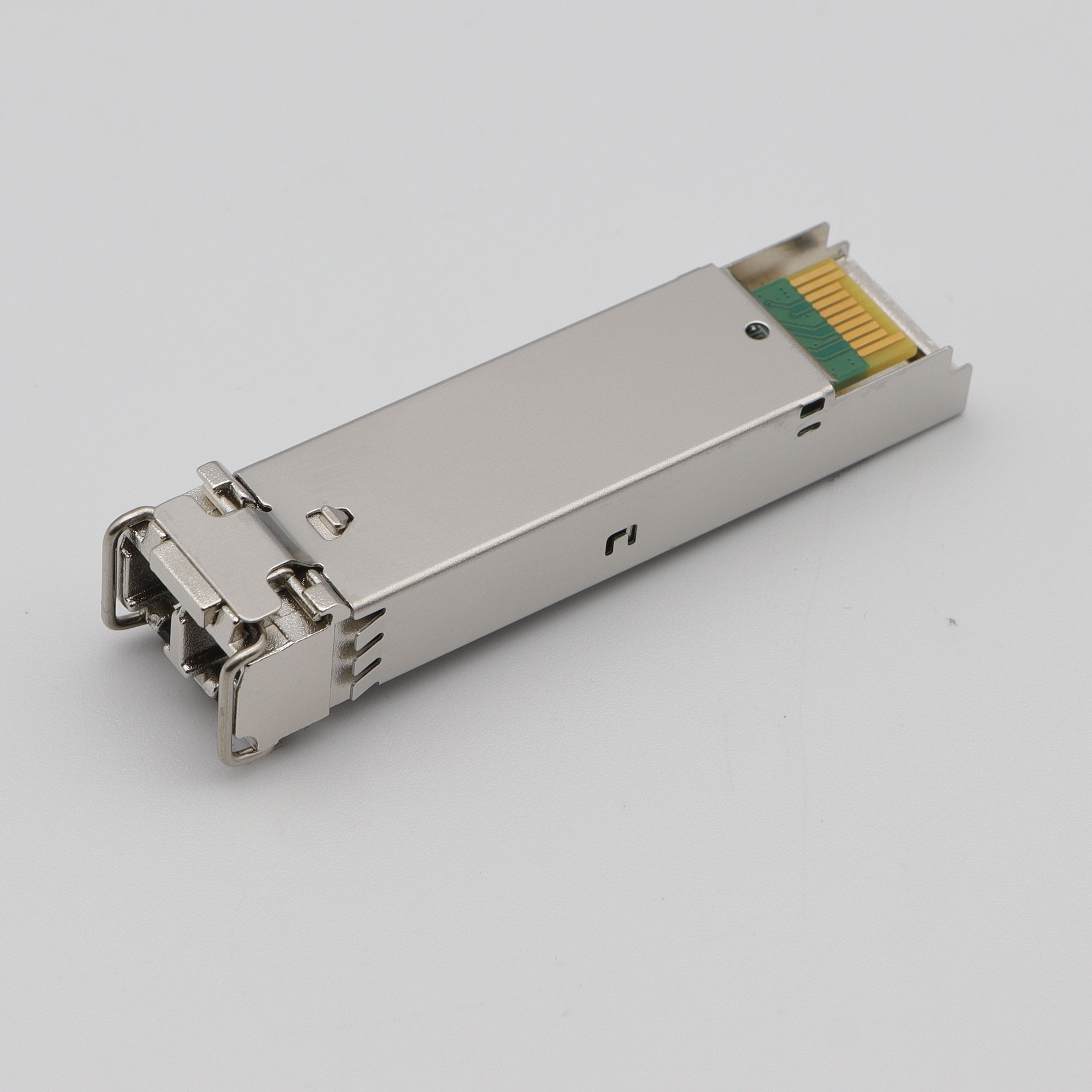

WT SFP Transceiver Module,WT-PD-G88-05-D,1.25G SFP 1000Base-SX, 850nm, 550M, Commercial grade

US$
0.00
 FS P/N: WT-PD-G88-05-D
156Sold 99Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
3-Year Warranty
3-Year Warranty
-
+
Product Highlights

  • SFP package with LC connector

  • 850nm VCSEL Laser and PIN photo detector

  • Up to 550m transmission on 50/125 um MMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825 compliant

  • Compatible with RoHS

  • Digital Diagnostic SFF-8472 compliant


Center Wavelength850nm
Storage Temperature0－70℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1W
Data Rate1250Mbps
Average Output Power-9－-3dBm
Extinction Ratio（Er）>8dB
Receiver Sensitivity（Rsen）≥-19dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty3 Years


  • Connectivity Solutions
  • Features

  • SFP package with LC connector

  • 850nm VCSEL Laser and PIN photo detector

  • Up to 550m transmission on 50/125 um MMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825 compliant

  • Compatible with RoHS

  • Digital Diagnostic SFF-8472 compliant



  • Reviews (99)
No reviews yet
  • Resources
WTPD-G88-05-D
WT SFP Transceiver Module,WT-PD-G88-05-D,1.25G SFP 1000Base-SX, 850nm, 550M, Commercial grade

WT-PD-G88-05-D

US$0.00
