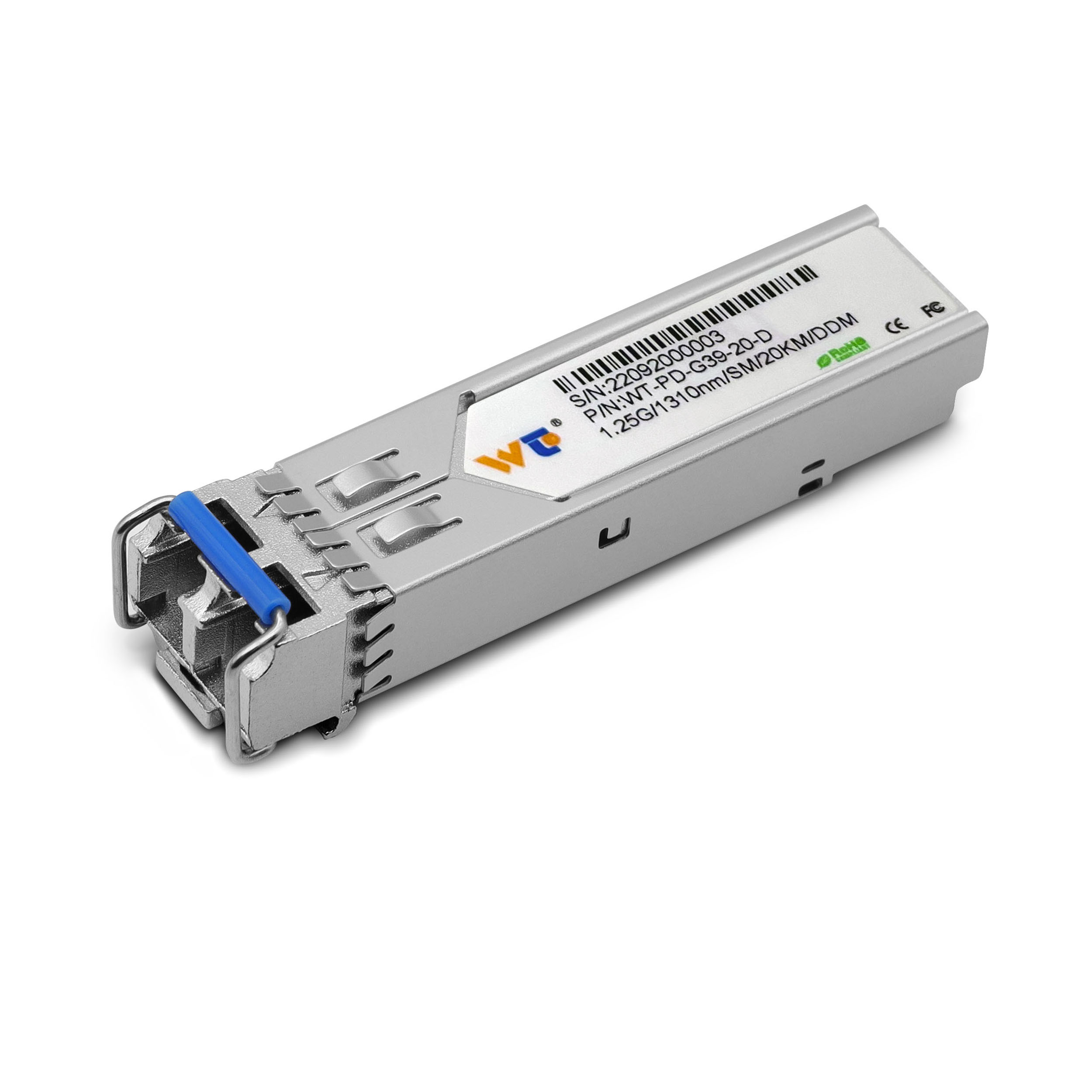

WT SFP Transceiver Module,WT-PD-G39-20-D,1.25G SFP 1000Base-LX, 1310nm,20KM,SMF, Commercial grade

US$
6.00
 FS P/N: WT-PD-G39-20-D
100Sold 99Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
3-Year Warranty
3-Year Warranty
-
+
Product Highlights

  • SFP package with LC connector

  • 1310nm FP laser and PIN photo detector

  • Up to 20Km transmission on SMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825  compliant

  • Compatible with RoHS

  • Digital Diagnostic SFF-8472 compliant

  • Signal Ground Isolated to Case


Center Wavelength1310nm
Storage Temperature0－70℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1W
Data Rate1250Mbps
Average Output Power-9－-3dBm
Extinction Ratio（Er）>9dB
Receiver Sensitivity（Rsen）≥-22dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty3 Years


  • Connectivity Solutions
  • Features

  • SFP package with LC connector

  • 1310nm FP laser and PIN photo detector

  • Up to 20Km transmission on SMF

  • +3.3V single power supply

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825  compliant

  • Compatible with RoHS

  • Digital Diagnostic SFF-8472 compliant

  • Signal Ground Isolated to Case
